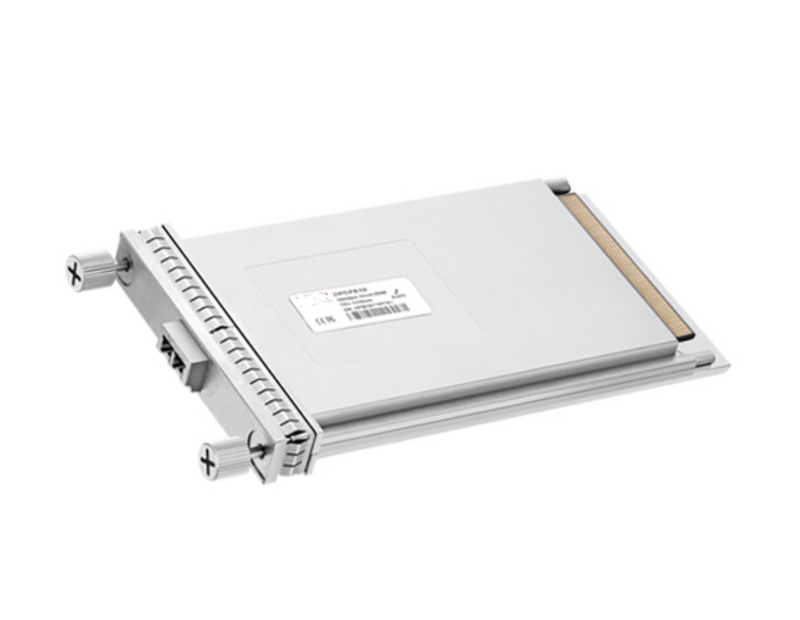

100G CFP
Keweifiber
| Quantity: | |
|---|---|
Hot pluggable CFP MSA form package, CFP MSA compliant
Supports 103.1Gb/s and 112Gb/s aggregate bit rates
4 independent full-duplex channels, Each channel has a maximum bandwidth of 28Gb/s
I2C management interface
RoHS compliance
Operating temperature range: 0~70°C(Commercial)
| P/N | Description | Data Rate | Reach | Tx | Rx | Output Power | Sensitivity |
|---|---|---|---|---|---|---|---|
| KWCFE10 | CFP LR4 | 103.1~112Gb/s | 10Km | 1294 ~ 1310nm LWDM EML | PIN | -4.3~+4.5dBm | ≦-8.6dBm |
| KWCFE40 | CFP ER4 | 103.1~112Gb/s | 40Km | 1294 ~ 1310nm LWDM EML | SOA+PIN | -2.9~+2.9dBm | ≦-21.4dBm |
Hot pluggable CFP MSA form package, CFP MSA compliant
Supports 103.1Gb/s and 112Gb/s aggregate bit rates
4 independent full-duplex channels, Each channel has a maximum bandwidth of 28Gb/s
I2C management interface
RoHS compliance
Operating temperature range: 0~70°C(Commercial)
| P/N | Description | Data Rate | Reach | Tx | Rx | Output Power | Sensitivity |
|---|---|---|---|---|---|---|---|
| KWCFE10 | CFP LR4 | 103.1~112Gb/s | 10Km | 1294 ~ 1310nm LWDM EML | PIN | -4.3~+4.5dBm | ≦-8.6dBm |
| KWCFE40 | CFP ER4 | 103.1~112Gb/s | 40Km | 1294 ~ 1310nm LWDM EML | SOA+PIN | -2.9~+2.9dBm | ≦-21.4dBm |
