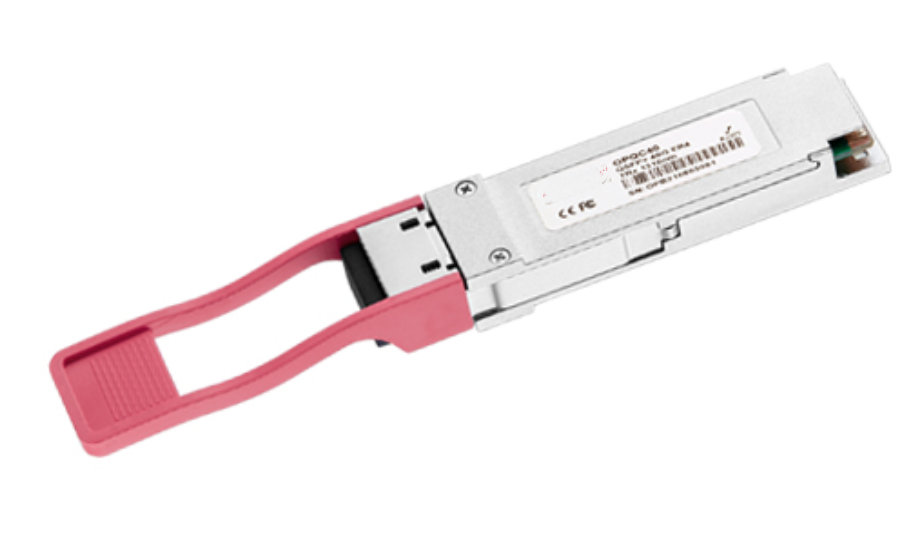

QSFP-SR4-40G Compatible 40GBASE-SR4 QSFP+ 850nm 150m DOM MTP/MPO-12 MMF Optical Transceiver Module

QSFP-SR4-40G Compatible 40GBASE-SR4 QSFP+ 850nm 150m DOM MTP/MPO-12 MMF Optical Transceiver Module

40G QSFP+ optical transceiver conform to QSFP+ MSA, the optical transceiver adopt LC or MPO optical interface, with low power consumption, small size, high reliability characteristics, is conducive to the data center to increase capacity, improve ports density and reduce power consumption, widely used in the data center network interconnection.

Model:
40G QSFP+
Brand:
Keweifiber

Quantity:
Availability:





Inquire Add to Basket

Product Description

Hot pluggable QSFP+ MSA form package, QSFP+ MSA compliant
4 independent full-duplex channels, Each channel has a maximum bandwidth of 11.2Gb/s
4*10Gb/s VCSEL/DFB/EML laser
I2C management interface
RoHS compliance
Operating temperature range: 0~70°C(Commercial)

P/N	Description	Data Rate	Reach	Tx	Rx	Output Power	Sensitivity
KWQC01	QSFP+ SR4	40Gb/s	100m	850nm VCSEL	PIN	-7.6~+2.4dBm	≦-11.1dBm
KWQC03	QSFP+ eSR4	40Gb/s	300m	850nm VCSEL	PIN	-7.5~+2.4dBm	≦-11.1dBm
KWQC02	QSFP+ CWDM IR4	40Gb/s	2Km	CWDM DFB	PIN	-7.5~+2.5dBm	≦-10.0dBm
KWQC02-4	QSFP+ PSM IR4	40Gb/s	2Km	1310nm DFB	PIN	-5.5~+2.3dBm	≦-11.5dBm
KWQC02-M	QSFP+ IR4	40Gb/s	2Km(SM)/150m(MM)	CWDM DFB	PIN	-7.0~+2.3dBm	≦-11.5dBm
KWQC10	QSFP+ LR4	40Gb/s	10Km	CWDM DFB	PIN	-7.0~+2.3dBm	≦-10.0dBm
KWQC10-4	QSFP+ PSM LR4	40Gb/s	10Km	1310nm DFB	PIN	-5.5~+2.3dBm	≦-11.5dBm
KWQC40	QSFP+ER4	40Gb/s	40Km	CWDM DFB	ADP	-2.7~+4.5dBm	≦-19.0dB
