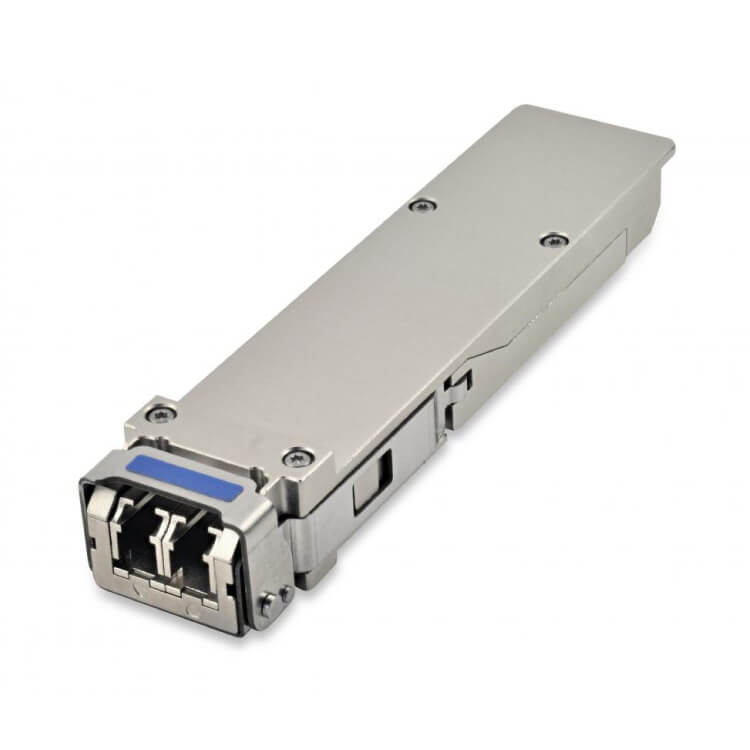

100GBASE-LR4 10km CFP4 Optical Transceiver

100G CFP4 series optical transceiver comply with CFP4 MSA, support 103.1~112Gb/s, using LC optical interface, with low power consumption, high reliability characteristics, can be compatible with Ethernet and OTU4 applications.
  • 100G CFP4

  • Keweifiber

Availability:
Quantity:
sharethis sharing button
  • Hot pluggable CFP4 MSA form package, CFP4 MSA compliant

  • Supports 103.1Gb/s and 112Gb/s aggregate bit rates

  • 4 independent full-duplex channels, Each channel has a maximum bandwidth of 28Gb/s

  • I2C management interface

  • RoHS compliance

  • Operating temperature range: 0~70°C(Commercial)

 Specification

P/N
Description
Data Rate
Reach
Tx
Rx
Output Power
Sensitivity
KWC4E10

CFP4 LR4
103.1~112Gb/s
10km
1294 - 1310nm LWDM EML
PIN
-4.3~+4.5dBm
≦-8.6dB
