Support KP4 FEC inside
100G single lambda
Keweifiber
Availability: | |
---|---|
Quantity: | |

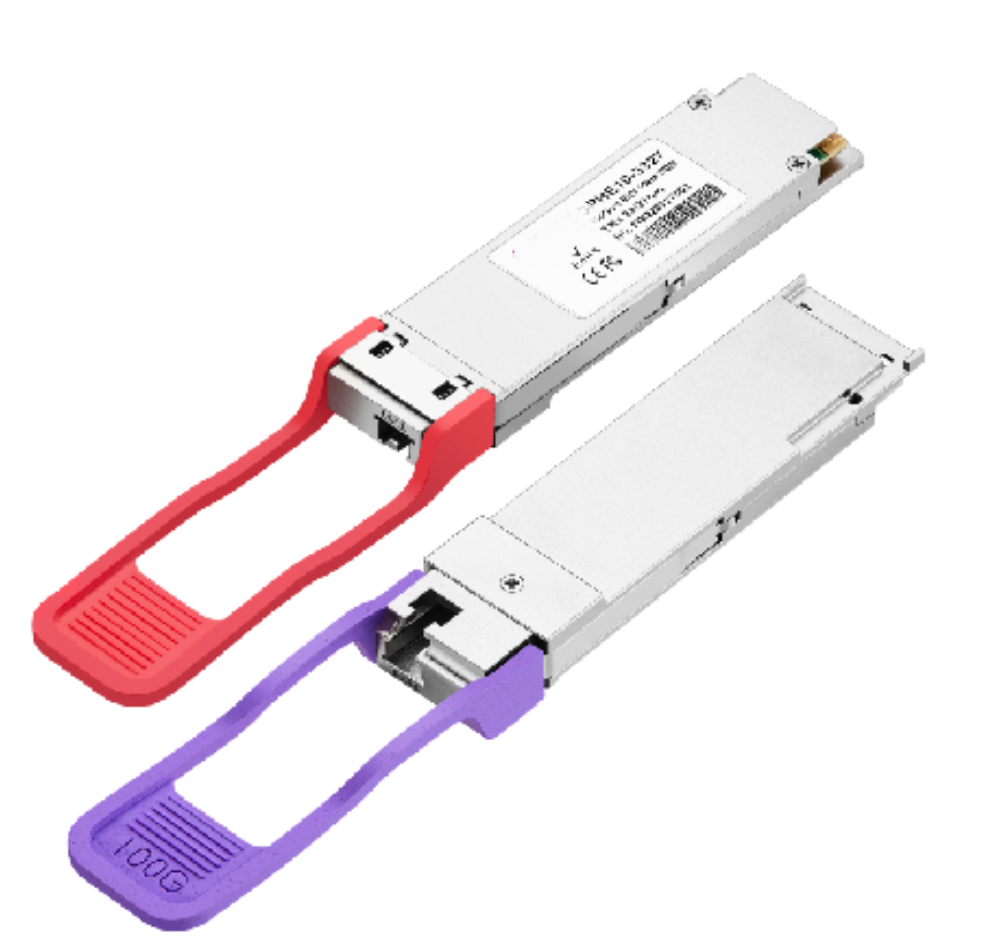

Hot-pluggable QSFP28
Compliant with 100G Lambada MSA
Single channel design, supports 106.25Gb/s data rate
Maximum link up to 30km
Single +3.3V power supply
Operating temperature range:0~70℃
Built-in digital diagnostic functions
Support KP4 FEC inside
P/N | Description | Data Rate | Reach | Tx | Rx | Output Power | Sensitivity |
---|---|---|---|---|---|---|---|
KWQE05-SW | 100G DR1 | 100Gb/s | 500m | 1310nm EML | PIN | -2.9~+4.0dBm | ≦-3.9dBm |
KWQE02-SW | 100G FR1 | 100Gb/s | 2Km | 1310nm EML | PIN | -3.1~+4.0dBm | ≦-4.5dBm |
KWQE10-SW | 100G LR1 | 100Gb/s | 10Km | 1310nm EML | PIN | -1.4~+4.5dBm | ≦-6.1dBm |
KWQE30-SW | 100G ER1-Lite | 100Gb/s | 30Km | 1310nm EML | APD | 0~+5.6dBm | ≦-12.5dBm |
KWHE10-2733 | 100G BIDI LR1 | 100Gb/s | 10Km | 1271nm EML | PIN | -1.4~+4.5dBm | ≦-6.1dBm |
KWHE10-3327 | 100G BIDI LR1 | 100Gb/s | 10Km | 1331nm EML | PIN | -1.4~+4.5dBm | ≦-6.1dBm |
KWHE30-0409 | 100G BIDI ER1-Lite | 100Gb/s | 30Km | 1304.58nm EML | APD | 0~+5.6dBm | ≦-12.5dBm |
KWHE30-0904 | 100G BIDI ER1-Lite | 100Gb/s | 30Km | 1309.14nm EML | APD | 0~+5.6dBm | ≦-12.5dBm |
Hot-pluggable QSFP28
Compliant with 100G Lambada MSA
Single channel design, supports 106.25Gb/s data rate
Maximum link up to 30km
Single +3.3V power supply
Operating temperature range:0~70℃
Built-in digital diagnostic functions
Support KP4 FEC inside
P/N | Description | Data Rate | Reach | Tx | Rx | Output Power | Sensitivity |
---|---|---|---|---|---|---|---|
KWQE05-SW | 100G DR1 | 100Gb/s | 500m | 1310nm EML | PIN | -2.9~+4.0dBm | ≦-3.9dBm |
KWQE02-SW | 100G FR1 | 100Gb/s | 2Km | 1310nm EML | PIN | -3.1~+4.0dBm | ≦-4.5dBm |
KWQE10-SW | 100G LR1 | 100Gb/s | 10Km | 1310nm EML | PIN | -1.4~+4.5dBm | ≦-6.1dBm |
KWQE30-SW | 100G ER1-Lite | 100Gb/s | 30Km | 1310nm EML | APD | 0~+5.6dBm | ≦-12.5dBm |
KWHE10-2733 | 100G BIDI LR1 | 100Gb/s | 10Km | 1271nm EML | PIN | -1.4~+4.5dBm | ≦-6.1dBm |
KWHE10-3327 | 100G BIDI LR1 | 100Gb/s | 10Km | 1331nm EML | PIN | -1.4~+4.5dBm | ≦-6.1dBm |
KWHE30-0409 | 100G BIDI ER1-Lite | 100Gb/s | 30Km | 1304.58nm EML | APD | 0~+5.6dBm | ≦-12.5dBm |
KWHE30-0904 | 100G BIDI ER1-Lite | 100Gb/s | 30Km | 1309.14nm EML | APD | 0~+5.6dBm | ≦-12.5dBm |
