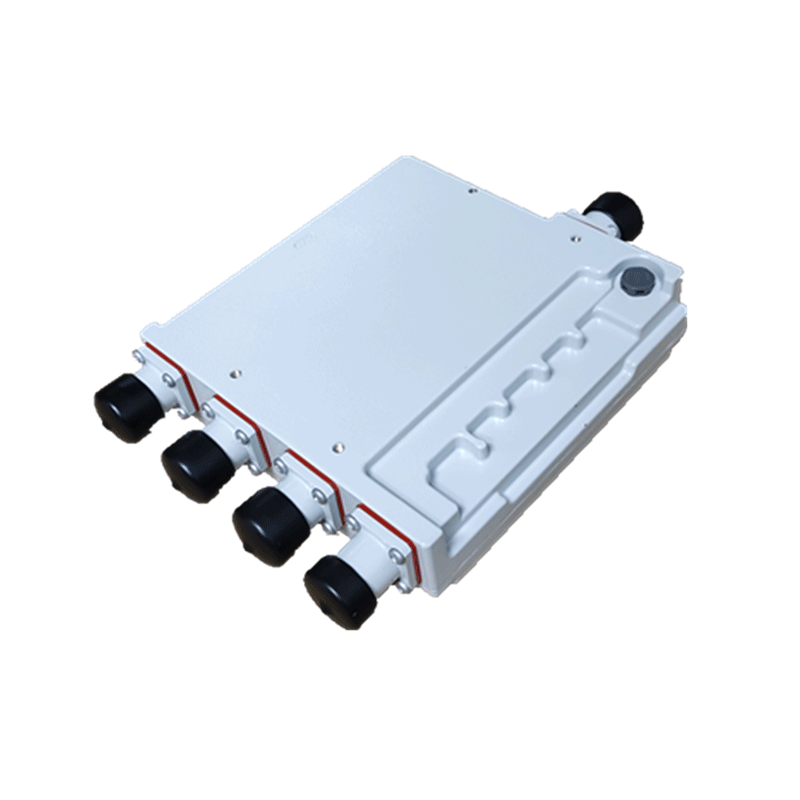

Quad band combiner | Quadplexer with DIN Type Connector

1. Technology available: 5G/4G/3G/2G/WiFi.

2. Frequency available: 380-960/1710-1880/1920-2170/2500-2700MHz

3. Connector type: 4.3-10 Female/DIN Female.

4. High quality: low PIM to -163dBc, insertion loss below 0.3dB, and isolation from 50dB.


This is a different band combiner, whose frequency can be customized for all operators. Designed with 4 inputs and 1 outputs, the Quadplexer Combiner can efficiently integrate multiple different bands and transmit the overall band respectively through multiple ports. For unused ports they can be terminated with low PIM dummy loads. The whole case is under IP66 waterproof, which can be applied to both indoor and outdoor. It would be your good choice for IBS/BTS system.
