Combiner - Telecom GSM 3G LTE RF Combiner/Splitter/Diplexer

9

Combiner - Telecom GSM 3G LTE RF Combiner/Splitter/Diplexer

Features
Wide operating frequency range The port adopts an N-female connector, andthe antenna port adopts a D-female connector, which is easy tooperate and maintain
RF combiner has large carrying power and loN PIM
nd lightning protectionIP 67 and RF combiner supports DC-bypass a
Low VSWR and return loss
RF combiner has long life cycle
Application
RF combiner supports 2G/ 3G/ 4G/ 5G commnication system In communication distribution system links, fF combiner is used for power distribution

Model:
380-960/1710-3700 MHz
Brand:
Kewei
Code:
80726

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specification

Part No.	80726
Electrical
Frequency range (MHz)	Port1→ Port3 Port4→ Port6 Port2→ Port3 Port5→ Port6	380-960 1710-3700
Insertion loss (dB)	≤0.3
Isolation(dB)	≥50
Return loss/VSWR	≤-20dB/1.22
Intermodulation(dBc)	≤-150/155/160 (with 2×20W)
Impedance (Ω)	50 Ω
Input power (W)	≤100 W(avg.)
DC/AISG	By-pass(max. 3000mA)
Lightning protection	10KA; 10/350μs pulse
Environmental
Operation temperature	-20°C to +65 °C
Storage temperature	-40°C to +85 °C
Relative humidity	5% - 95%
Application	Indoor

Code	Type	DC pass	weight（kg）	size（mm）	Connector

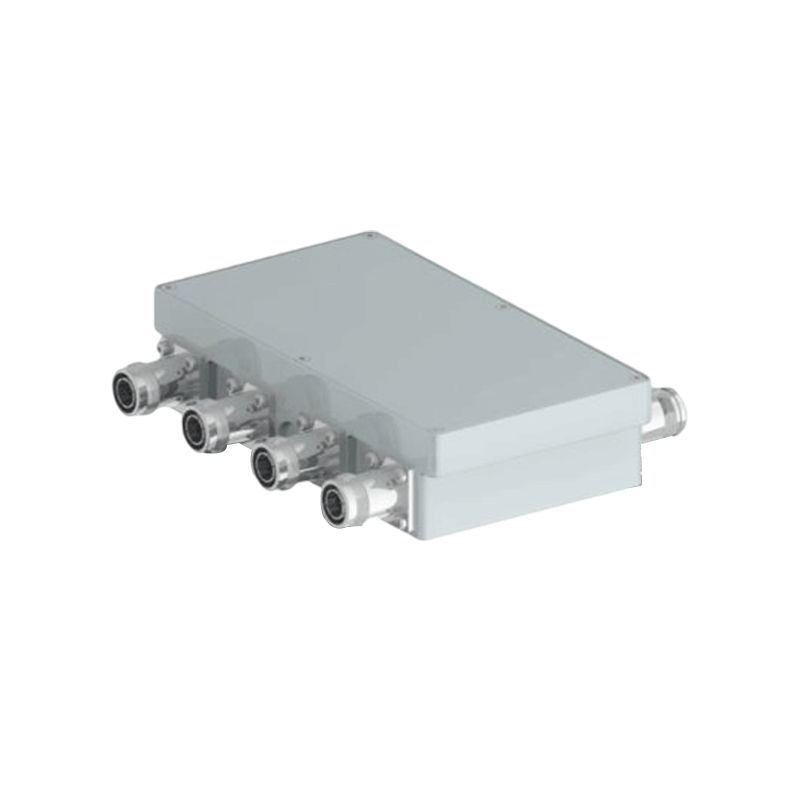

8072650	single	DC pass all	≤2	18110043.5	4.3-10 Female

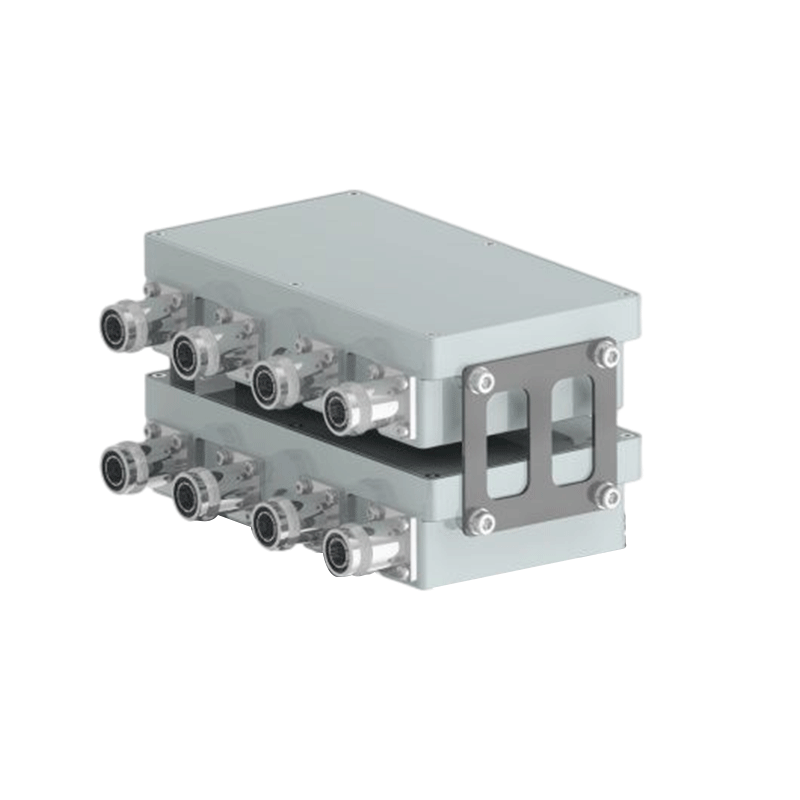

8072651	double	DC pass all	≤4	18110090	4.3-10 Female
8072660	single	DC pass all	≤2	18110043.5	7/16 Female
8072661	double	DC pass all	≤4	18110090	7/16 Female
