NSN
Keweifiber
Availability: | |
---|---|
Quantity: | |
Applications
FTTA & FTTH

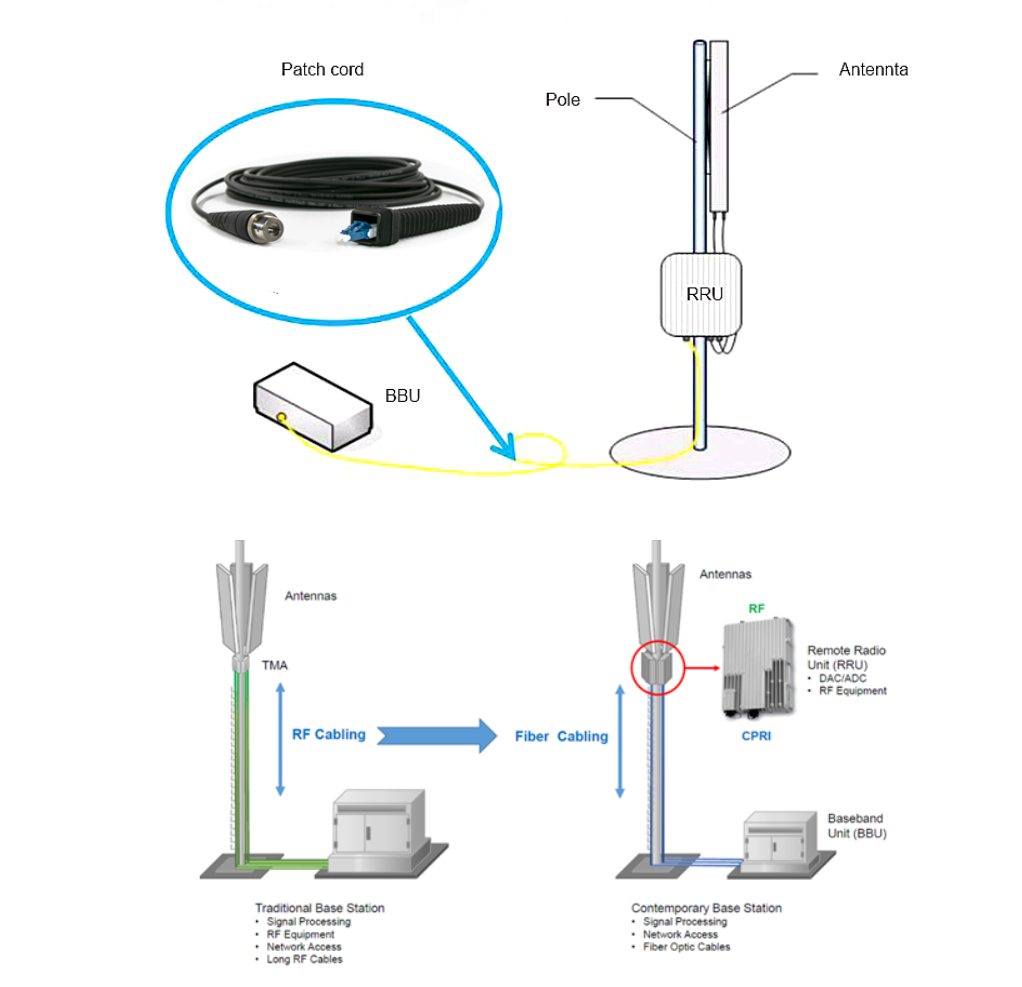

Base station, BTS installation, BBU to RRU
Indoor/outdoor building cabling
Harsh environments application
Long haul networking
Direct burial and aerial lashing
Name | Product code | Length | Cable label | Usage | Notes |
FUFAS MM OD fiber LC OD-LC OD dual 2 m | 473288A | 2 m (6.6 ft) | 995741 | OM2 - RFM/RRH | MM, LC dual OD IP-LC OD IP dual, HF,OM2 Flexible ended |
FUFAR MM OD fiber LC OD-LC OD dual 5 m | 473287A | 5 m (16.4 ft) | 995740 | ||
FUFBC MM OD fiber LC OD-LC OD dual 10 m | 473305A | 10 m (32.8 ft) | 995758 | ||
FUFBA MM OD fiber LC OD-LC OD dual 30 m | 473303A | 30 m (98.4 ft) | 995756 | ||
FUFBB MM OD fiber LC OD-LC OD dual 50 m | 473304A | 50 m (164 ft) | 995757 | ||
FUFAY MM OD fiber LC OD-LC OD dual 100 m | 473302A | 100 m (328.1 ft) | 995755 | ||
FUFBD MM OD fiber LC OD-LC OD dual 200 m | 473306A | 200 m (656.2 ft) | 995759 |
Technical specifications | ||
Items | Optical Characteristics for Multi Mode Fibres 50/125 μm Fibers | |
Transmission Distance Gigabit Ethernet | 300m at 850nm | 550m at 1310nm |
Tensile strength | 350 N maximum | |
Bending radius | 180nm minimum | |
Crush Resistance | 1500 N/100 mm | |
Cable diameter | 8mm 8.5mm 9mm for choice | |
Fiber core | 1-core, 2-core, 4-core for choice | |
working | -20℃ to +70℃ | |
Storage | - 40℃ to +85℃ |
Applications
FTTA & FTTH
Base station, BTS installation, BBU to RRU
Indoor/outdoor building cabling
Harsh environments application
Long haul networking
Direct burial and aerial lashing
Name | Product code | Length | Cable label | Usage | Notes |
FUFAS MM OD fiber LC OD-LC OD dual 2 m | 473288A | 2 m (6.6 ft) | 995741 | OM2 - RFM/RRH | MM, LC dual OD IP-LC OD IP dual, HF,OM2 Flexible ended |
FUFAR MM OD fiber LC OD-LC OD dual 5 m | 473287A | 5 m (16.4 ft) | 995740 | ||
FUFBC MM OD fiber LC OD-LC OD dual 10 m | 473305A | 10 m (32.8 ft) | 995758 | ||
FUFBA MM OD fiber LC OD-LC OD dual 30 m | 473303A | 30 m (98.4 ft) | 995756 | ||
FUFBB MM OD fiber LC OD-LC OD dual 50 m | 473304A | 50 m (164 ft) | 995757 | ||
FUFAY MM OD fiber LC OD-LC OD dual 100 m | 473302A | 100 m (328.1 ft) | 995755 | ||
FUFBD MM OD fiber LC OD-LC OD dual 200 m | 473306A | 200 m (656.2 ft) | 995759 |
Technical specifications | ||
Items | Optical Characteristics for Multi Mode Fibres 50/125 μm Fibers | |
Transmission Distance Gigabit Ethernet | 300m at 850nm | 550m at 1310nm |
Tensile strength | 350 N maximum | |
Bending radius | 180nm minimum | |
Crush Resistance | 1500 N/100 mm | |
Cable diameter | 8mm 8.5mm 9mm for choice | |
Fiber core | 1-core, 2-core, 4-core for choice | |
working | -20℃ to +70℃ | |
Storage | - 40℃ to +85℃ |
Kunshan Kewei Fiber Communcations Equipment Co.,Ltd.
