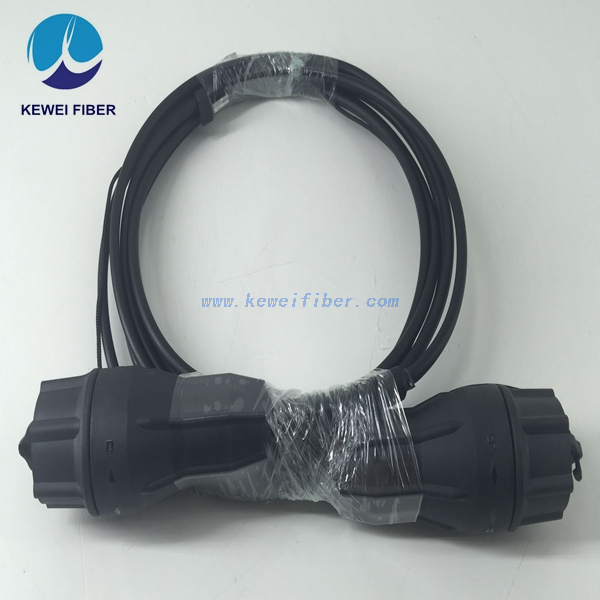

Ericsson FullAXS CPRI patch cord waterproof IP68 Grade

CPRI Armored cable assembly is designed ideal for outdoor fiber cable applications, which is usually used for FTTA networks, Base station (BBU to RRU), supply to Huawei, ZTE, Ericsson, Nokia
  • FPM

Availability:
Quantity:
sharethis sharing button

Applications

  • FTTA & FTTH

  • Base station, BTS installation, BBU to RRU

  • Indoor/outdoor building cabling

  • Harsh environments application

  • Long haul networking

  • Direct burial and aerial lashing



Technical specifications

Items

Optical Characteristics for Multi Mode Fibres 50/125 μm Fibers

Transmission Distance

Gigabit Ethernet

300m at 850nm

550m at 1310nm

Tensile strength

350 N maximum

Bending radius

180nm minimum

Crush Resistance

1500 N/100 mm

Cable diameter

 8mm 8.5mm 9mm for choice

Fiber core

1-core, 2-core, 4-core for choice

working

-20℃ to +70℃

Storage

- 40℃ to +85℃
