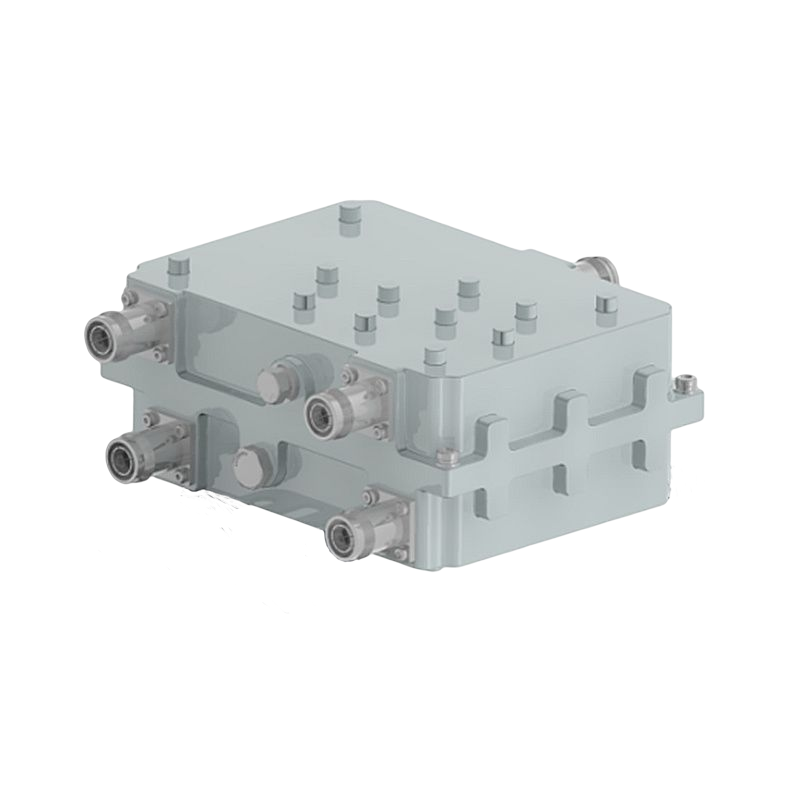

Double Unit 2575-2615/2540-2560&2660-2680 MHz RF Diplexer Combiner With DIN Female Connector

Features
Wide operating frequency range The port adopts an N-female connector, andthe antenna port adopts a D-female connector, which is easy tooperate and maintain
RF combiner has large carrying power and loN PIM
nd lightning protectionIP 67 and RF combiner supports DC-bypass a
Low VSWR and return loss
RF combiner has long life cycle
Application
RF combiner supports 2G/ 3G/ 4G/ 5G commnication system In communication distribution system links, fF combiner is used for power distribution
