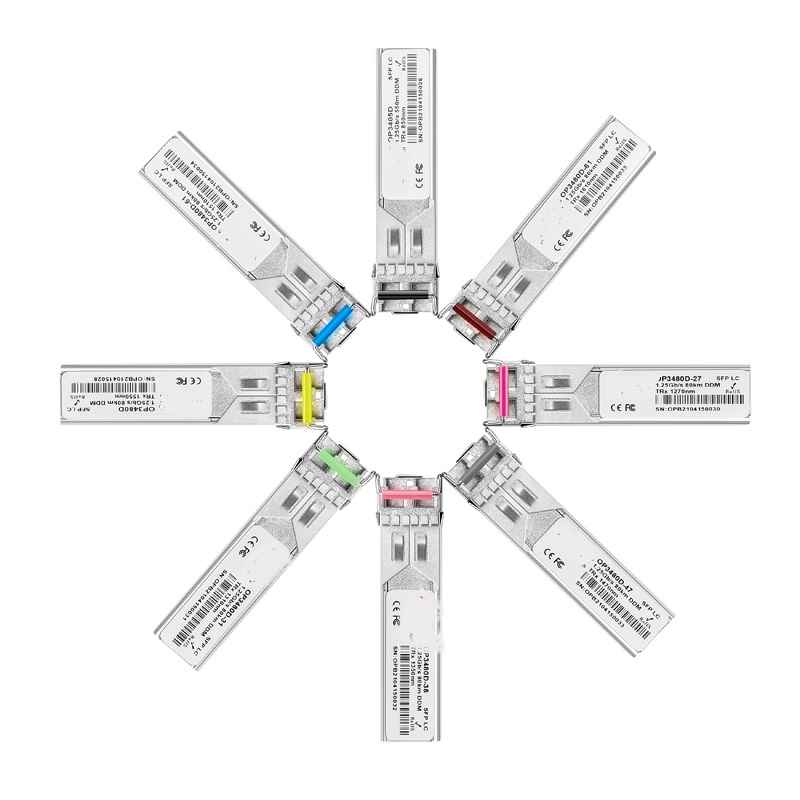

CWDM&DWDM SFP
Keweifiber
| Quantity: | |
|---|---|
Hot pluggable SFP MSA form package, SFP MSA compliant
Compliant with Ethernet/SDH/SONET
18-Wavelengths CWDM (1270~1610nm) are available
DWDM 100GHz ITU Grid C-band wavelength is available
Duplex LC Connector
Low power consumption
2-wire Interface for Management, Built-in digital diagnostic functions
Supports a variety of transmission distances from 40km to 120km
RoHS compliant
Operating temperature range: 0~70°C(Commercial) /-40~85℃(industrial)
| P/N | Description | Data Rate | Reach | Tx | Rx | Output Power | Sensitivity |
|---|---|---|---|---|---|---|---|
| KW3280D-XX | CWDM | 155Mb/s | 80Km | CWDM DFB | PIN | -5~-0dBm | ≦-34dBm |
| KW3280D-DXX | DWDM | 155Mb/s | 80Km | DWDM DFB | PIN | -5~0dBm | ≦-34dBm |
| KW3440D-XX | CWDM | 1.25Gb/s | 40Km | CWDM DFB | PIN | -5~0dBm | ≦-24dBm |
| KW3480D-XX | CWDM | 1.25Gb/s | 80Km | CWDM DFB | PIN | 0~5dBm | ≦-24dBm |
| KW340CD-XX | CWDM | 1.25Gb/s | 80/120Km | CWDM DFB | APD | 0~5dBm | ≦-32dBm |
| KW3440D-DXX | DWDM | 1.25Gb/s | 40Km | DWDM DFB | PIN | -5~0dBm | ≦-24dBm |
| KW3480D-DXX | DWDM | 1.25Gb/s | 80Km | DWDM DFB | PIN | 0~4dBm | ≦-25dBm |
| KW340CD-DXX | DWDM | 1.25Gb/s | 120Km | DWDM DFB | APD | 0~4dBm | ≦-32dBm |
| KW3640D-XX | CWDM | 2.5Gb/s | 40Km | CWDM DFB | PIN | 0~5dBm | ≦-20dBm |
| KW3680D-XX | CWDM | 2.5Gb/s | 80Km | CWDM DFB | APD | 0~5dBm | ≦-28dBm |
| KW360CD-XX | CWDM | 2.5Gb/s | 80/120Km | CWDM DFB | APD | 1~6dBm | ≦-31dBm |
| KW3640D-DXX | DWDM | 2.5Gb/s | 40Km | DWDM DFB | PIN | 0~5dBm | ≦-18dBm |
| KW3680D-DXX | DWDM | 2.5Gb/s | 80Km | DWDM DFB | APD | 0~5dBm | ≦-28dBm |
| KW360CD-DXX | DWDM | 2.5Gb/s | 120Km | DWDM DFB | APD | 0~5dBm | ≦-30dBm |
