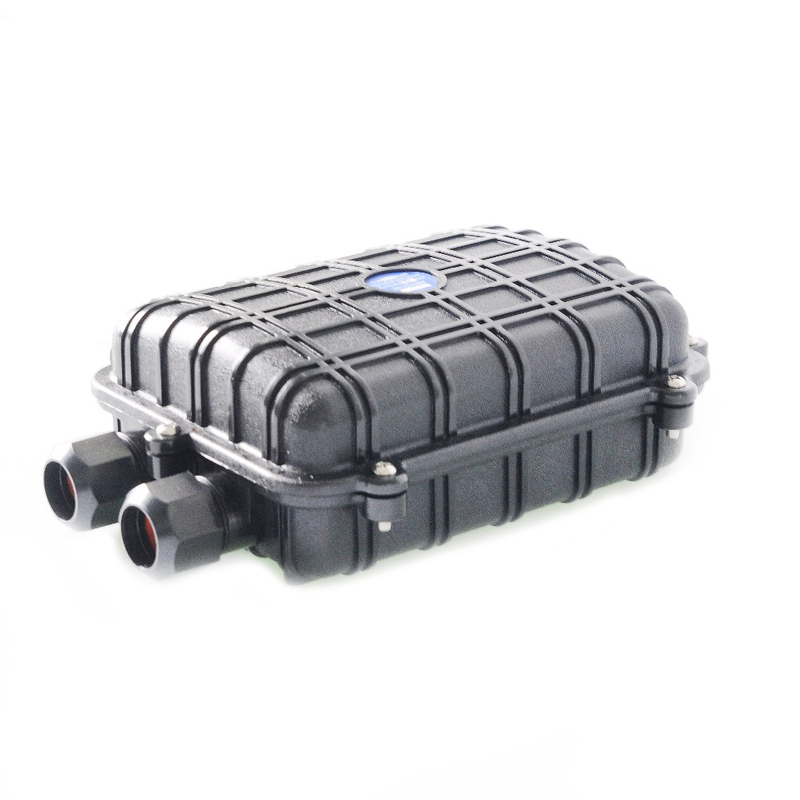

fiber optic splice distribution box

Quantity:
  • KW-H003
  • Kewei
Product Description

Feature:
1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed
6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it
Scope:
This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The Scope of application is :aerial,underground,pipeline,handhole.The ambient temperature ranges from -40 to 65℃.
Remark:
Accessories for customers' selection: earthing deriving device, pressure testing valve, buffer tube for ribbon or bunchy fiber, internal metal stainless steel,etc.

Specifications:

Size: mm  L×W×H
Cable ports

Cable Diameter
Max. Capacity
Core capacity per tray

280×200×90

max 4


φ14×2  φ12×4
or
φ14×1  φ12×2

Bunchy:96
Ribbon:144

Bunchy:12-96(cores)
Ribbon:up to 144(cores)

Trays:

Model No.
Capacity
Size: mm    L×W×H

FOST023

Bunchy

single:12 cores         double:24 cores

133*121*10.5
Ribbon
in normal:3pieces          max.:6 pieces

Configuration
Main Component
No.
Name of components
Quantity
Usage
Remarks
1
Housing(bottom)
1 set
Protecting fiber cable splices in whole
Internal diameter:205x146(mm)
2
Housing(cover)
1 set
Protecting fiber cable splices in whole
Internal diameter:205x146(mm)
3
Fiber optic

splice tray(FOST)
Max 4 trays (bunchy) or
4 trays (ribbon)
Fixing heat shrinkable protective sleeve and holding fibers
Suitable for: Bunchy: 6,12,24(cores) Ribbon: 3 (pieces)
4
Integrated seal fitting
1 set
Sealing between FOSC cover and FOSC bottom

5
Port plug
2 pieces
Sealing empty ports

  6
       Fixed bolt
             1 sets
           Fixing the housing

Main accessories and special tools
7
Heat shrinkable protective sleeve

Protecting fiber splices
Configuration as per capacity
8
Nylon tie

Fixing fiber with protective coat
Configuration as per capacity
9
Insulation tape
1 roll
Enlarging diameter of fiber cable for easy fixing

10
Seal tape
1 roll
Enlarging diameter of fiber cable which fits in with seal fitting
Configuration as per specification
11
Hanging hook
1 set
For aerial use

12
Earthing wire
1 piece
Putting through between earthing device

13
Abrasive cloth
1 piece
Grind the fiber

14
Labeling paper
1 piece
Labeling fiber

15
Special wrench
1 piece
Fixing octagonal nut(plastic)

16
Instruction manual
1 piece
standard installation


Optional accessories
No.
Name of components
Quantity
Usage
Remarks
1
Pressure testing valve
1 set
After injecting air it is used for pressure testing and sealing testing
 Configuration as per requirement
2
Earthing deriving device
1 set
Deriving metallic components of fiber cable in the FOSC for earthing connection
Configuration as per requirement
3
Desiccant
1 bag
Put into FOSC before sealing for desiccating air.
Configuration as per requirement
4
Buffer tube
decided by the customers
Hitched to fibers and fixed with FOST, managing buffer.
Configuration as per requirement

 Package:

No.
specification
Carton size(cm)
Capacity
N.W
Remarks
1
inner box
29.5×21.5×11.3
1pcs
1.3-1.6KG
Configuration as per weight
2
outer box
61.5×37×46.5
12pcs
15.6-19.2KG
Configuration as per weight
