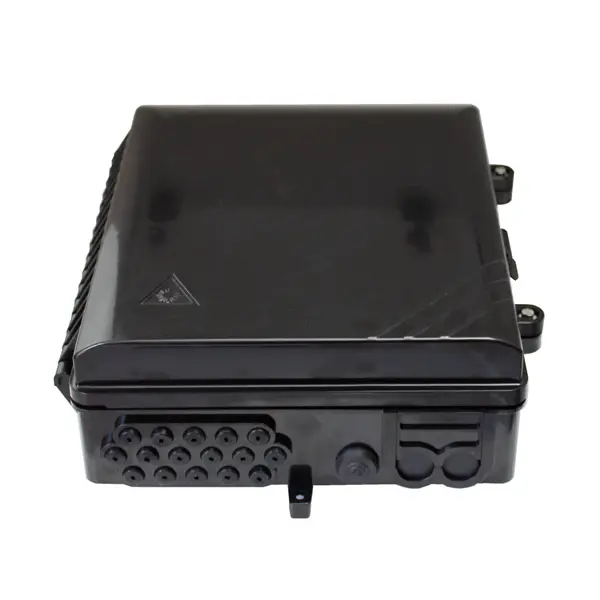

16 Cores NAP Box Fiber Access Terminal FAT-16N

FAT-16N fiber access termination box is able to hold up to16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box
  • FAT-16N
  • Kewei fiber
Quantity:
   Features
● Water-proof design with IP-65 Protection level.
● Integrated with flap-up splice cassette and adapter holder.
● Maximum 24F splice capacity,stainless anti-rust bolts and nuts.
● Easy for maintainance and expansion.
● Fiber bend radius control more than 40mm.
● Designated position for the placement of 4pcs x 1:8 splitters or 2 pcs of 1:16 splitters.
● One cable entrance port and one mid span port (8-16mm) and 16x drop cable ports (2x3mm).

Configuration
Fiber Access Terminal FAT-16N Parameter
Material Size Max Capacity Nos of adapter Weight Color
PC+ABS AxBxC(mm)
PLC splitter 24pcs SC/UPC 2.0kg BLACK
320x260x110 Splice 24 fibers 4 pcs of 1x8(SC) or 2 pcs of 1x16(SC) or 24pcs SC/APC
Application ● wall-mounted installation pole-mounted installation

Standard Accessories

Wall mounted kits, fiber protective sleeves, isolated tape, key, spiral fiber tube, cable ties,manual of installation.

 Optional Accessories Pole mounted kits.
