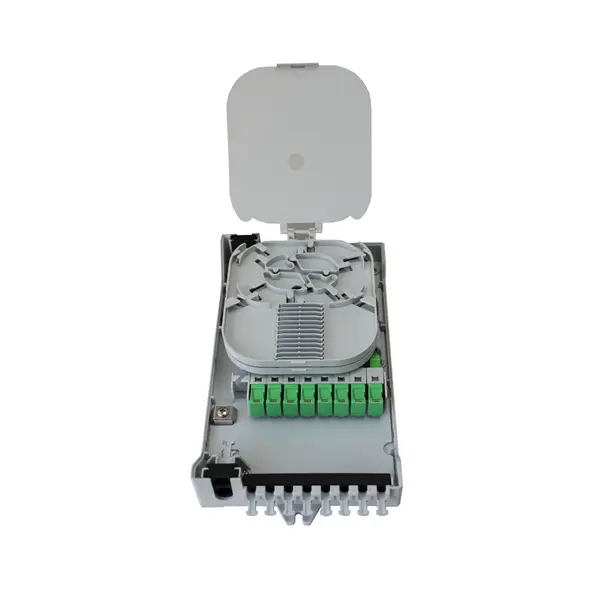

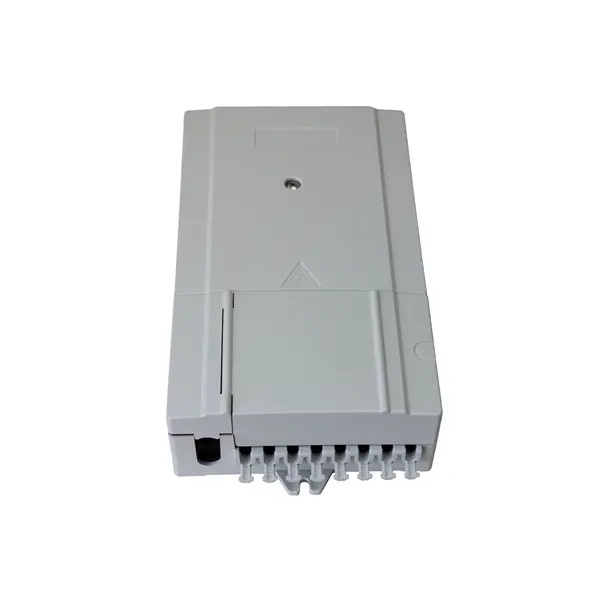

FAT-8T
Kewei fiber
| Quantity: | |
|---|---|
● Water-proof design with IP-54 protection level for outdoor.
● Integrated with 2 x splice trays and 8 x shutter type adapters.
● Fiber bend radius control more than 35mm.
● 4 x inlets for uncut cable with maximum diameter 12mm .
● 2 x covers structure to provide a better protection and neat cabling, unauthorized tampering is prevented.
● Max 20F splice capacity and 2 x splitters(1:8) .
● Made by industrial PC+ABS plastic material.
● 8 x outlets for 2x3mm flat type or 3-5mm round type drop cable.
Configuration| Fiber Access Terminal FAT-8T Parameter | ||||||
| Material | Size | Max Capacity | Nos of adapter | Weight | Color | |
| PC+ABS | AxBxC(mm) | | PLC splitter | 8 pcs SC/UPC | 0.45 kg | LIGHT GREY |
| 210*125*47 | Splice 20 fibers | 2 pcs of 1x8(SC) | or 8 pcs SC/APC | |||
Cable ties, fiber protective sleeves, wall mounted tapped screws, rubber grommets for cable inlets&outlets(pre-installed),manual instruction.
