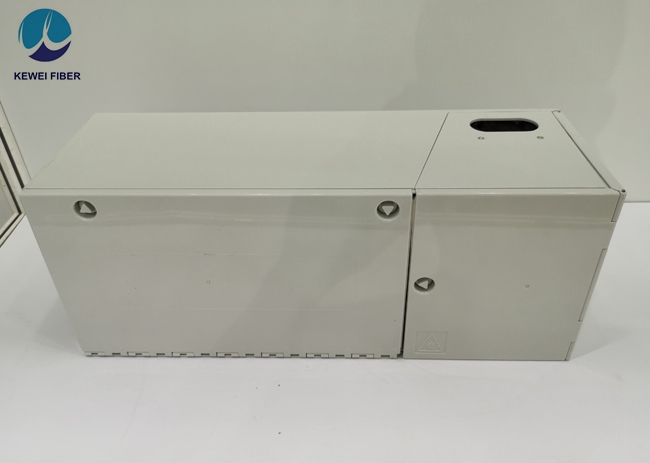

Cajas Terminales ópticas para interior de edificios CTO-48

CTO-48 is an optic distribution box for FTTH application with a capacity of 48 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Quantity:
  • CTO-48
  • Kewei fiber
 Features

● IP-30 protection level for indoor installation.

Integrated with 6 x splice trays and 48 x SC adapters.

Fiber bend radius control more than 40mm.

1x mid-span port for uncut cable with maximum diameter 16mm,2 round ports for 17mm

Each splice tray accommodates 8 x sleeves

Working temperature -25 degree ~+55 degree.

3x1:16 mini ABS box splitter can be installed in the box.

Configuration
Fiber Access Terminal CTO-48 Parameter
Material Size Max Capacity No.of adapters Weight Color
PC+ABS AxBxC(mm)
No. of Splitters 48 SC 2.5 kgs LIGHT GREY

450*150*180

Splice 48 fibers

3 pcs of mini ABS box splitter 1:16

Application ● wall-mounted installation Standard Accessories

Cable ties, fiber protective sleeves,key, manual instruction.
