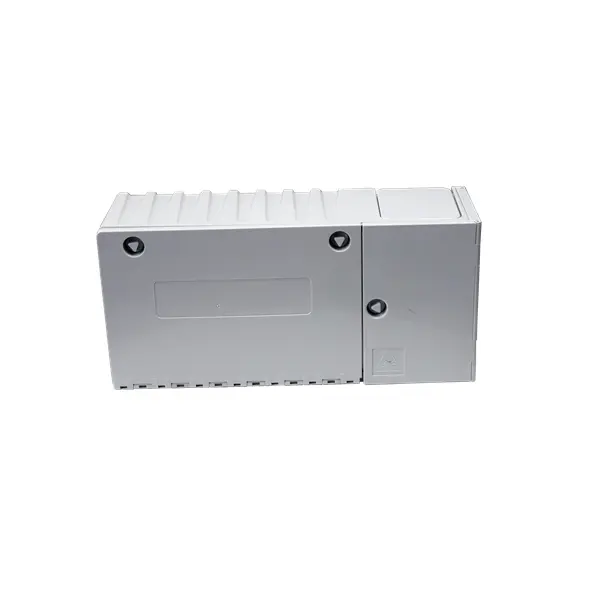

Cajas Terminales ópticas para interior de edificios CTO-32

CTO-32 is an optic distribution box for FTTH application with a capacity of 32 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTX network system.It integrates fiber splicing,splitting,distribution,storage and cable connection in one solid protection box.
Quantity:
  • CTO-32
  • Kewei fiber
 Features

●  IP30 for indoor installation.

●  Integrated with 3 x splice trays,maximum 32 fibers.

●  32 X SC adapters.

●  2 X mini ABS box 1:16 splitters

●  Working temperature:-25~+55 degrees

Configuration
Cajas Terminales ópticas para interior de edificios CTO-32 Parameter
Material Size Max Capacity Weight Color
PC+ABS AxBxC(mm)
No. of Splitters 1.7 kgs LIGHT GREY

320*150*105

Splice 32 fibers

2 pcs of mini ABS box 1:16 splitters

Application ● wall-mounted installation Standard Accessories

Cable ties, fiber protective sleeves,installation bolt and nut, key
