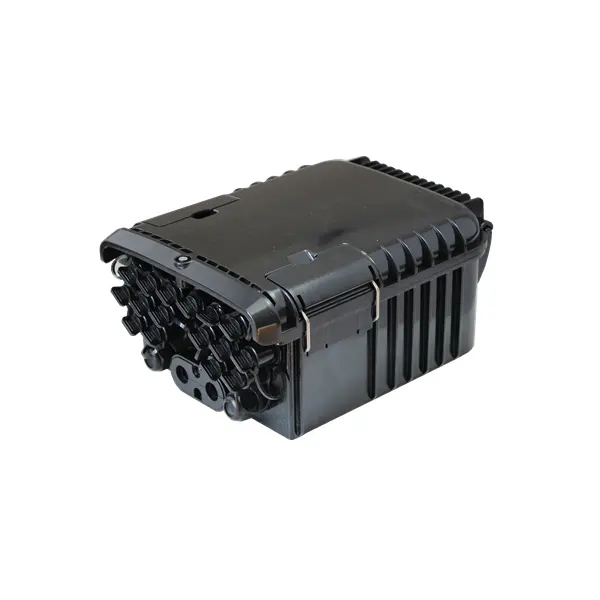

FATM-0416R
Kewei fiber
| Quantity: | |
|---|---|
●Water-proof design with IP-65 protection level for outdoor.
●16 x reinforced adapters for drop cable with reinforced connectors.
●Minimum fiber bending radius: 35mm.
●Plug-and-play installation, easy for maintenance and expansion.
●180 degree access with 2pcs of buckled lock structure.
●The box casing is made of industrial plastic PC+ABS material.
●Designated position for the placement of 1:8 and 1:16 PLC splitter.
●1 mid-span cable entrance(10-16.5mm) for uncut cable and 1 reserved cable entrances for distribution cable gland(8-13.5mm).
Configuration| Fiber Access Terminal FATM-0416R Parameter | ||||||
| Material | Size | Max Capacity | Nos of reinforced adapter | Weight | Color | |
| PC+ABS | AxBxC(mm) | Splice 96 fibers | PLC splitter | 16pcs SC/UPC | 1.6kgs | Black |
| 290*210*130 | 4 trays,24fiber/tray | 4 pcs of 1x8 or 4 pcs of 1x16 | or 16pcs SC/APC | |||
Splice trays x 2pcs, wall mounted kits, fiber protective sleeves, cable protection tube, key, PG 13.5 cable glands fordistribution ports.
Optional Accessories
pole-mounted kits
