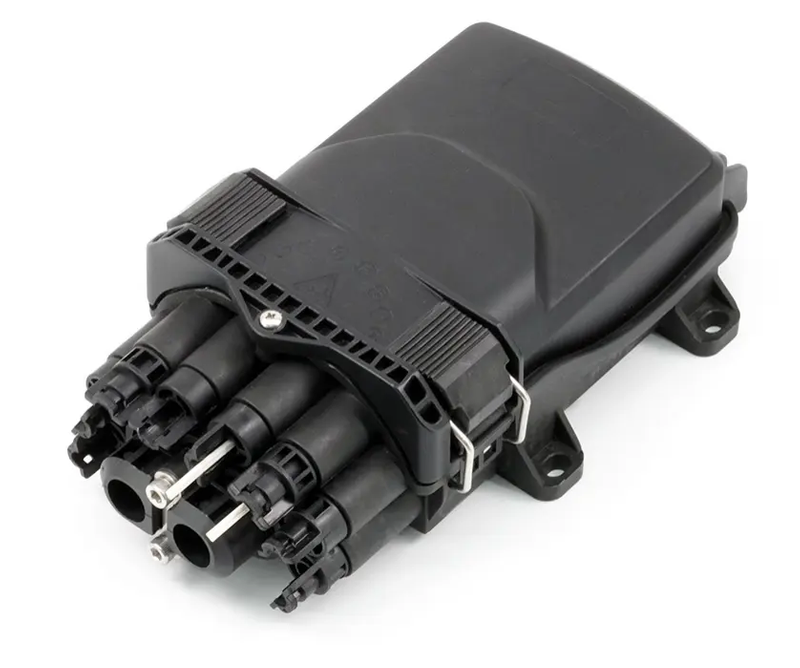

FTTH network system IP68 GPJ08 Fiber Optical Distribution Box 8 fiber Port suitable for 2.0/3.0/flat drop cable

9

FTTH network system IP68 GPJ08 Fiber Optical Distribution Box 8 fiber Port suitable for 2.0/3.0/flat drop cable

GPJ08-B is a 8F terminal box which used as a termination point for the feeder cable to connect with drop cable in FTTH networksystem. It is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as multi-purposeapplication. It could be installed in aerial, wall, pole mounted mode.

Model:
GPJ08
Brand:
Kewei fiber
Code:

Quantity:
Availability:





Inquire Add to Basket

Product Description

* Compact design, light weight and easy installation.
* Made by high quality material(PP+GF) and meet 120 hours salt spray
* Build in one splice tray (24F), max capacity up to 24F
* Applicable for 1pcs of uncutcable and 8pcs of drop
* Support micro splitter (1:8) and 8 pcs SC/APC adaptors
* Water proof level: IP68
* Installation method: Pole mounting, Wall mounting, Aerial mounting

Model Name
GPJ08
Size(MM)
256*169*86
Gross Weigth (KG)
1.4
No.of cable entry
1 un-cut cable, Φ10mm～17.5mm
No.of Drop cable
8 pcs drop cable, Φ2*3mm or Φ3-8mm round cable
Adapter
8 pcs SC/APC
Splitter
1:8 Micro splitter
Splice Tray
24F
Max Capacity
24F
Water proof level
IP68
Installation Method
Pole/Wall/ Aerial mounted
Operation temperature
－45℃～85℃
