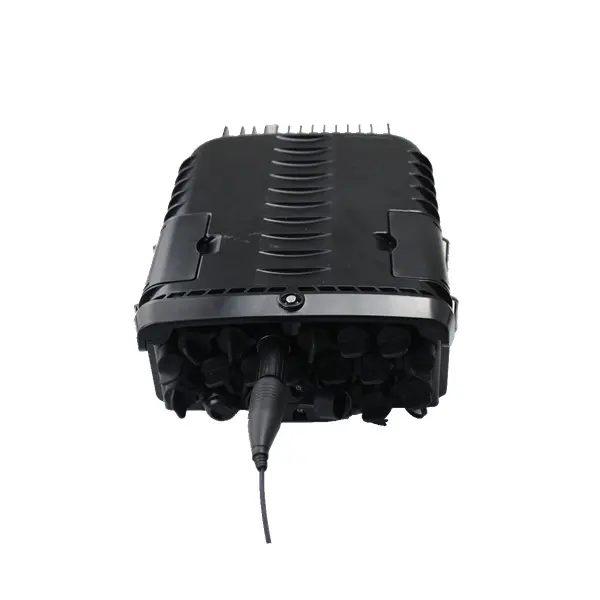

Fiber Access Terminal with Built-in SC Adapters FATM-0316B

FATM-0316B fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.
  • FATM-0316B

  • Kewei fiber

sharethis sharing button
 Features ●Protection level: IP65, base and cover sealed with buckled lock  and O-ring system, cable entry ports sealed with rubber.

●Support 48 fiber splices, minimum fiber bending radius: 35mm.

●16 x build-in adapters for drop cable with fast connectors.

●Designated position for the placement of 4pcs of 1:8 splitters.

●Support wall/pole mounted and aerial hanging installation.

●Plug-and-play installation, easy for maintenance and expansion.

●1 mid-span cable entrance(10-16.5mm) for uncut cable and 1 reserved cable entrances for distribution cable gland(8-12mm).

Fiber Access Terminal FATM-0316B Parameter
Material Size Max Capacity Nos of built-in adapter Weight Color
PC+GF AxBxC(mm) Splice 48 fibers PLC splitter 16pcs SC/UPC 1.4 kgs Black


4 trays,12fiber/tray 4 pcs of 1x8 or 16pcs SC/APC
Application ● wall-mounted installation pole-mounted installation Standard Accessories

Splice trays x 4pcs, wall mounted kits, fiber protective sleeves, cable protection tube, key, PG 13.5 cable glands fordistribution ports.

Optional Accessories

pole-mounted kits
