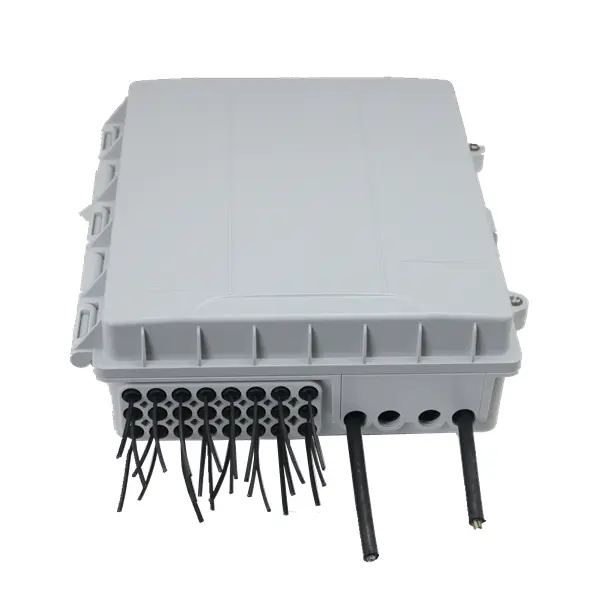

NAP Box for PLC Splitter FAT-24H

FAT-24H fiber access termination box is able to hold up to24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box
  • FAT-24H
  • Kewei fiber
Quantity:
  Features ● Water-proof design with IP-65 Protection level. ● 2 bolts and 1 buckled lock structure.Maximum 24F splice capacity, stainless anti-rust bolts and nuts . ● Easy for maintainance and expansion. ● Fiber bend radius control more than 40mm. ● Designated position for the placement of 3pcs x 1:8 splittersMid span for 4 x main cable entrance and 24 x drop cable entrance. Configuration
Fiber Access Terminal FAT-24H Parameter
Material Size Max Capacity Nos of adapter Weight Color
PC+ABS AxBxC(mm)
PLC splitter 24pcs SC/UPC 2.4kg LIGHT GREY

330*305*105

Splice 24 fibers 3 pcs of 1x8(SC) or 24pcs SC/APC
Application ● wall-mounted installation pole-mounted installation Standard Accessories

Wall mounted kits, fiber protective sleeves, isolated tape, key, spiral fiber tube, cable ties, manual of installation.

Optional Accessories Pole mounted kits.
