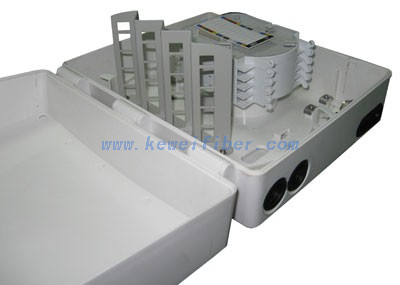

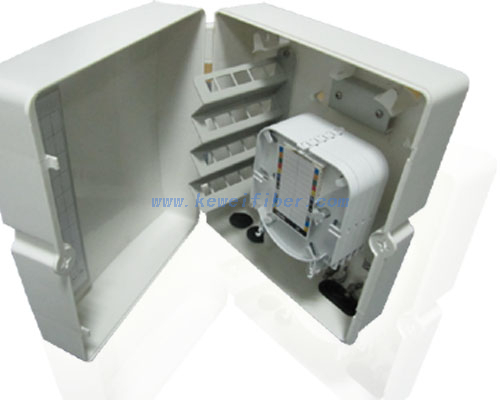

ODN-F FTTH Fiber Optic Terminal Box

FTTH Fiber Optic Splitter Distribution Terminal, in building with PON technology, is used as the connector from feeder cable to branch cable to protect them. It could be used for obligation, direct transmission, distribution and dispatch of finer inn nodes between feeder cable and branch fiber cable.

Quantity:
  • Fiber Optic Terminal Box, Suitable for one 2x32 or two 1x16 PLC splitter; SC adaptor panel; adaptor not included
  • Kewei
  • KWFDB3202

Features:

  • Applicable to use of building in the PON technology optical distribution network
  • Suitable for one 2:32 PLC splitter, or four 1 :8 PLC splitter
  • Light and compact with high strength engineering plastic material (ABS)
  • Wall-mounting application
  • Easy open/close by “self-clip” method
  • SC adapter panel
  • Optional: PLC Splitter, SC Adapter, Fast Connector, etc
  • Small cubage, unique structure and easy installation

Application Usage

      • Install Appliction: Wall-mount,
      • FTTx, FTTB, FTTH
      • PON, GPON, EPON, BPON
      • CATVSystem

Specifications



Parameters Specifications

Functions

Straight through, branching, passive splitter

Splitter Type

Micro splitter

Splitter Installation Position

Splitter fixing bracket

Adaptor Type

SC

Splice Tray Type

10#

Splice Tray Quantity (pcs)

5

Applied Cable

Figure-8 soft cable, general outdoor cable, indoor wiring cable

Voltage Resistance Strength

Non-puncture, no arc-over under 3KVDC / 1min

Insulation Resistance (MΩ/500VDC )

>2×10,000

Atmospheric Pressure(KPa)

70 ~ 106

Relative Humidity

≤85% (+40°C)

Environmental Temperature (°C)

-25 ~ +55°

Dimensions (mm)

240 x 135 x 280
