Kewei fiber Waterproof 60cores Fiber Optic Splice Joint And Distribution Closure For FTTH FTTX Drop Cable

1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed
6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it
Data Communications Networks
Local Area Networks
  • FTT-B08

  • Kewei fiber

Quantity:
sharethis sharing button

Specification




- Made of high quality engineer plastic material (PP),Good mechanical strength, Elegant appearance, sturdiness and durability. - Suitable for indoor or outdoor ,wall-mounted , pole installation. - Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance. - Fiber routing is reasonable. - Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
Construction
Description
Capacity Of FOSC(Bunchy)
60 cores
Material
PP

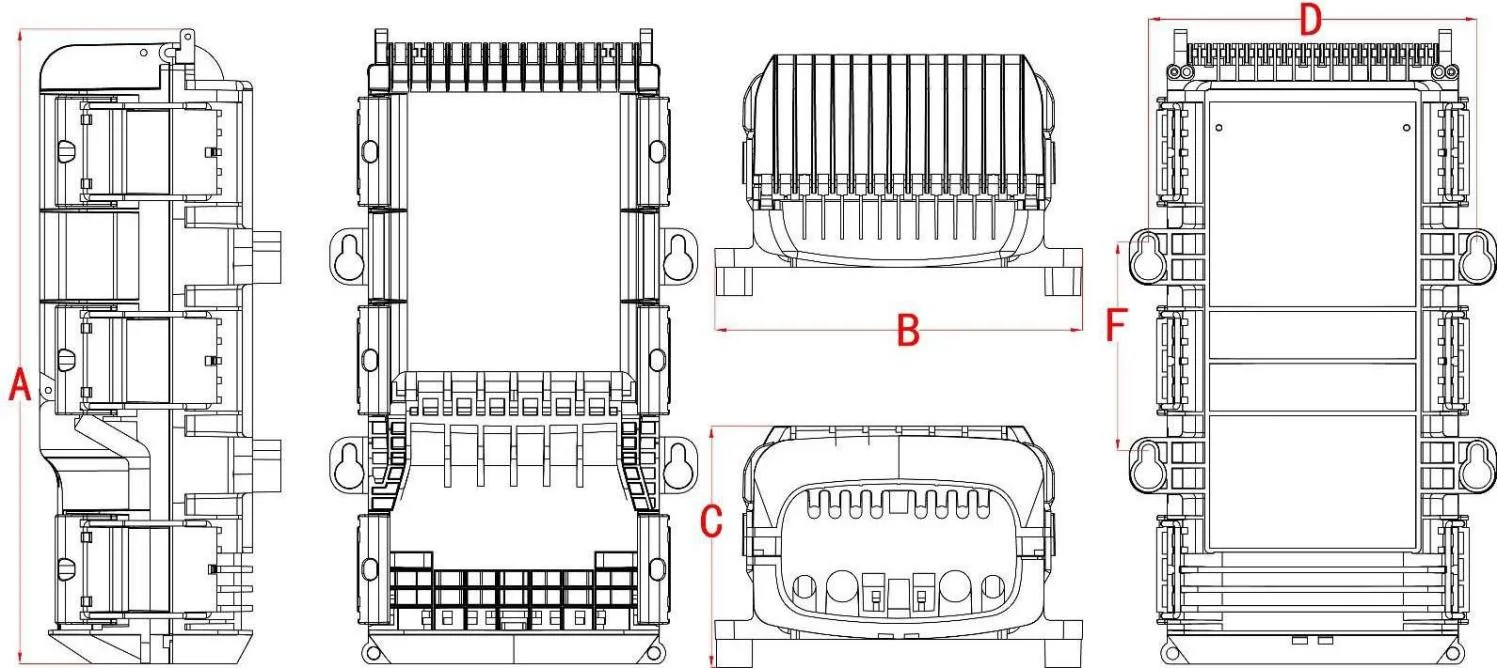

Dimension (mm)
339*195*128
Inlets/Outlets
IN 4 OUT 8
Installation
Pole mounting,Pedestal mounting
Strand mounting,Wall-mounting
Net Weight(g)
2050
Protection Level
IP67
Diameter Of Fiber Cable
Φ5mm~φ10mm
Operating Temperature
-40℃~+65℃
