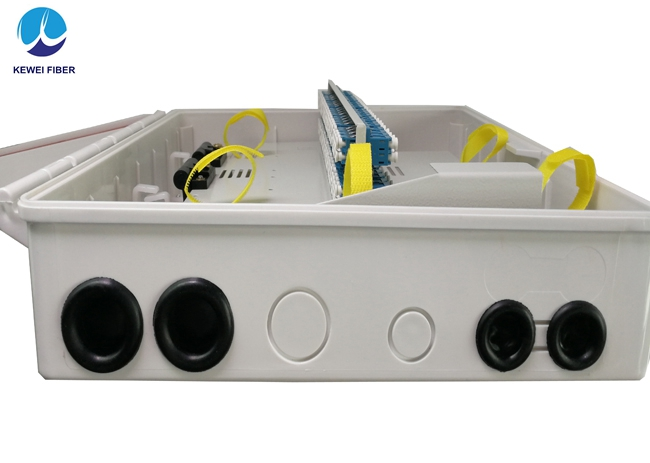

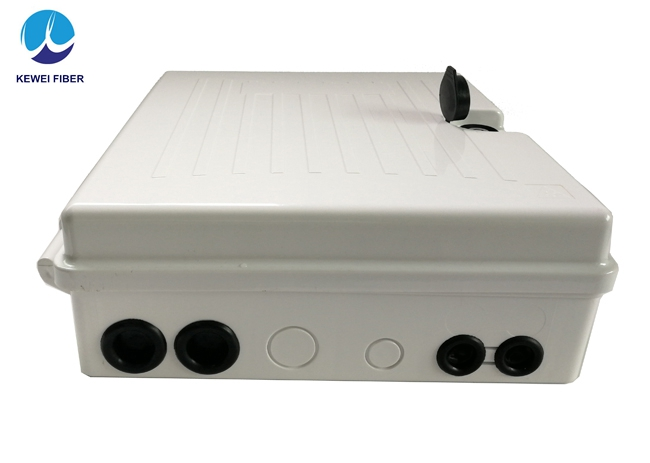

High Quality 48 Cores FTTH Fiber Distribution Box

1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed
6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it
Data Communications Networks
Local Area Networks
  • KW-FDB-248A

  • Kewei fiber

Quantity:
sharethis sharing button

Specification




Item No.

KW-FDB-248A
 Outside dimension
350*340*120mm
Material of box body
Flame-resistant ABS plastic , PC
Entry ports and cable diameter

4×φ24mm
Number of adapters
48xSC Simplex Adapters
Max Capacity of splice
48 cores
PLC splitter type
Micro PLC Splitter 1x16 or 1x32
Mounting Type
Wall-mount or Pole-mount
