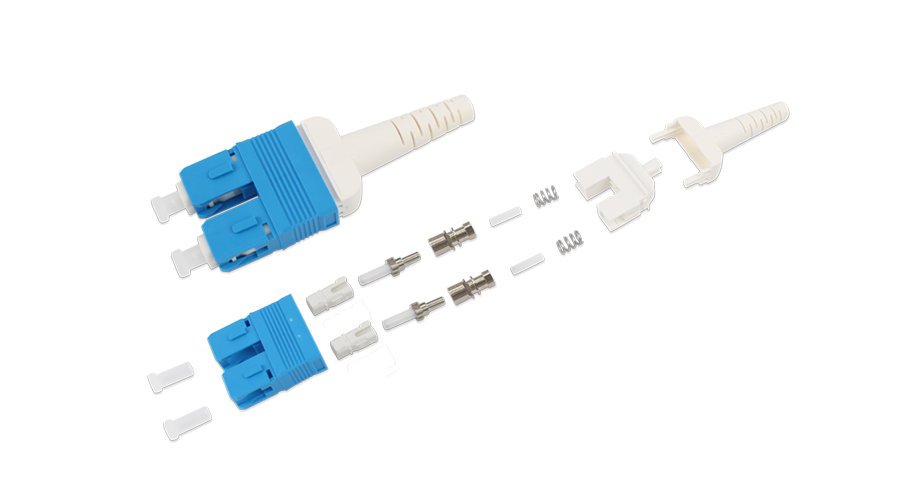

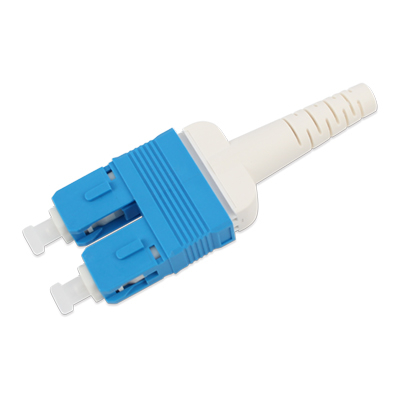

Fiber Connector, SC Duplex, for 2.0mm SMF, Blue, Uniboot design

9

Fiber Connector, SC Duplex, for 2.0mm SMF, Blue, Uniboot design

Fiber Optic Connector is an important components used in the fiber optic network. It is also the key part used in fiber optic patch cord and fiber optic pigtail.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Application

◉ Test Equipment
◉Telecommunication Networks
◉Local Area Networks (LANs)







◉ Data Processing Networks
◉ Premise Installations
◉ Wide Area Networks (WANs)

◉ Industrial, Medical & Military

◉ CATV, Metro

◉ Active Device Termination

Specification

parameter	SC Uniboot Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um
