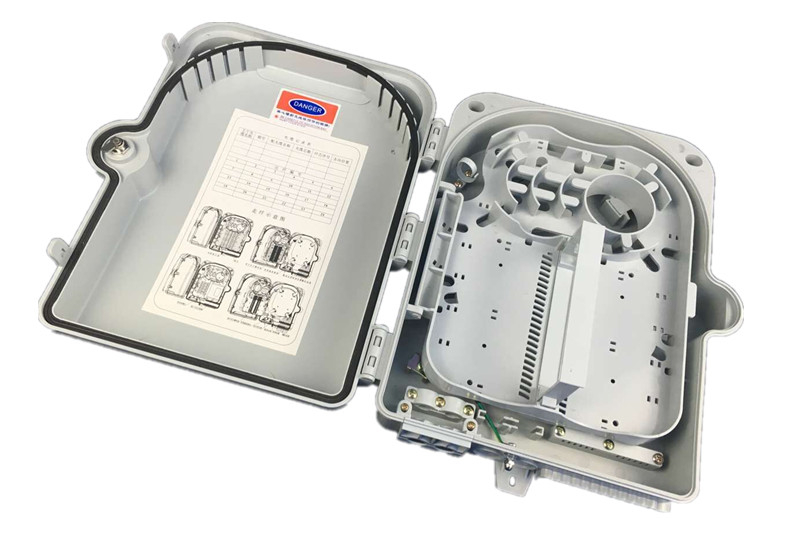

24 Fiber distribution box

Quantity:
  • 24 Fiber
1. Description:
1.It is used for different kinds of modules and applied to the working area subsystem.

2.It uses embedded surface frame, easy to install and disassemble

3.With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate
.

4. Cable management can be connected without cutting(with express port)

5.All modules are free of welding.


2.Specification


Item Technical data
Application 3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter 125μm ( 652 & 657 )
Tight cladding diameter 250μm & 900μm
Mode of application Single mode & duplex mode
Tensile strength >50 N
End-use temperature -40~+85
Adaptor SC & LC
Insertion loss ≤0.2dB(1310nm & 1550nm)
output 1

3.Configuration table


  Model             Size Max Capacity       Installation Size
      A*B*C(mm)    SC     LC            D (mm)
24 Fiber      345*270*95     24    48         190*298
