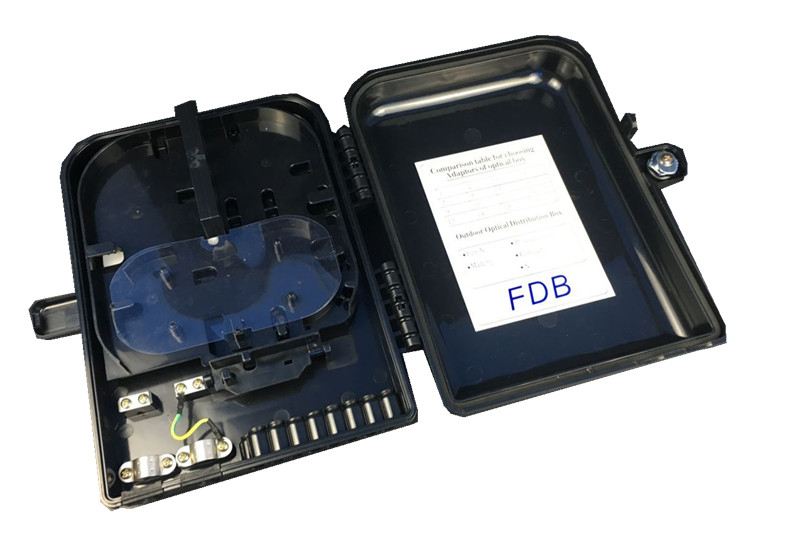

16 Fiber distribution box

Quantity:
1. Description:
The equipment is used as a termination point for the feeder cable to connect with drop
cable in FTTx communication network system. The fiber splicing, splitting, distribution can
be done in this box, and meanwhile it provides solid protection and management for the
FTTx network building

2,Features:
1,Total enclosed structure.
2,Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to
IP65.
Kunshan Kewei Fiber Communications Equipment Co.,Ltd
3,Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,
distribution...etc all in one.
4,Cable,pigtails,patch cords are running through own path without disturbing each other,
cassette type SC/LC/PLC adaptor installation, easy maintenance.
5,Distribution panel can be flipped up, feeder cable can be placed by expression port,
easy for maintenance and installation.
6,Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both
indoor and outdoor uses

3,Specification:
1,Environmental requirement
Working temperature:-40℃~+85℃
Relative humidity:≤85%(+30℃)
Atmospheric pressure:70KPa~106Kpa
2,Main technical datasheet
Insertion loss:≤0.2dB
UPC return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction:>1000 times
3,Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than
20000MΩ/500V(DC);IR≥20000MΩ/500V
The withstand voltage between grounding device and cabinet is no less than
3000V(DC)/min, no puncture,no flashover;U≥3000V

4,Configuration table:
Model            Description               Size                       Max Capacity                 Installation Size
                                                      A*B*C(mm)               SC  LC  PLC                      D*E (mm)
FDP-16F       Splitter Box            300*222*73            16  32  32(LC)                    157.5*82
