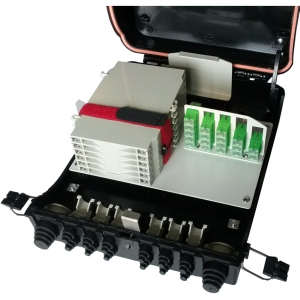

Discription: Outdoor fiber optic distribution box, connectoried type, can be equipped maximum 6 splice tray 12/24FO and 24 SC adaptors. IP54, suitable for outdoor application.
Features & Benefits
▪ Flame-retardant, impact-resistant engineering plastic and IP54
. Tested by SGS and other third party. Ensuring a weather-resistant seal that protects against harsh environmental conditions
▪ Lock system
Can be locked by key lock or side hasps.
▪ Cover support
The box cover can be possioned on 90 or 180 degree.
▪ Cable fixing system
Branch cable can be also fixed individually. Drop cable fixing support rubber for customer option.
▪ Splitter tray
Splitter tray has a same size with splice tray and suitable for micro PLC splitter 1x8, 1x16.
▪ SC adaptor panel
Suitable for 24 SC no falnge adaptors
| Part No. | KW-FDB26 |
| Dimension | 245×296×94.5 mm |
| Entry ports and cable dia. （max.） | 2×φ22mm |
| Output ports and cable dia. (max.) | 4×φ11mm |
| Output ports and cable dia. (max.) | 8×φ10mm |
| Max. number of splice trays | 6 pcs |
| Splice capacity of each tray | 12/24FO |
| Max. numbers of adaptors | 24 SC |
| Cover open fixed position | 90 & 180 degree |
| Lock type | Key lock with dust proof cover |
| Installation way | Wall-mounted or pole-mounted |
