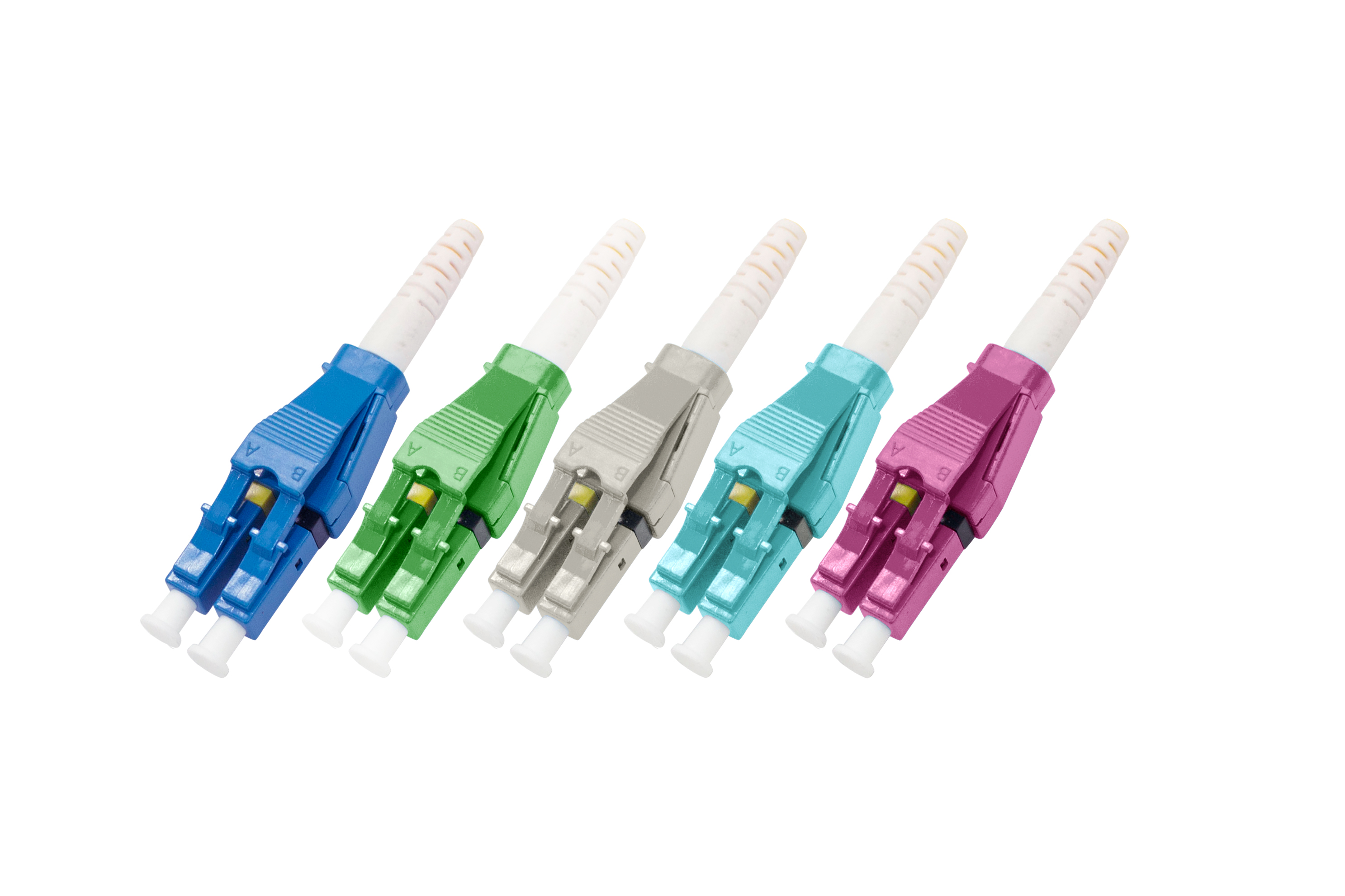

kewei fiber LC Duplex Polarity Reversible Uniboot optical fiber connector

9

kewei fiber LC Duplex Polarity Reversible Uniboot optical fiber connector

Connector Parts: Dust Cap, Aqua Outer Housing, Ferrule Assembly, Spring, Small Transparent Tube, Inner Frame, upper cover below cover, Stopper, White Boot

Fiber Count: Duplex Insertion Loss: ≤0.25dB
Fiber Mode: Multi Mode
Return Loss: /
Polish Type: PC
Durability: >1000times
Cable Diameter: 3.0mm Operating Temp:-40~85°C
Durability: >1000times
Cable Diameter: 2.0mm/3.0mm Operating Temp:-40~85°C

Quantity:




Inquire Add to Basket

Product Description

Housing Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

Specification

parameter	LC Uniboot Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um
