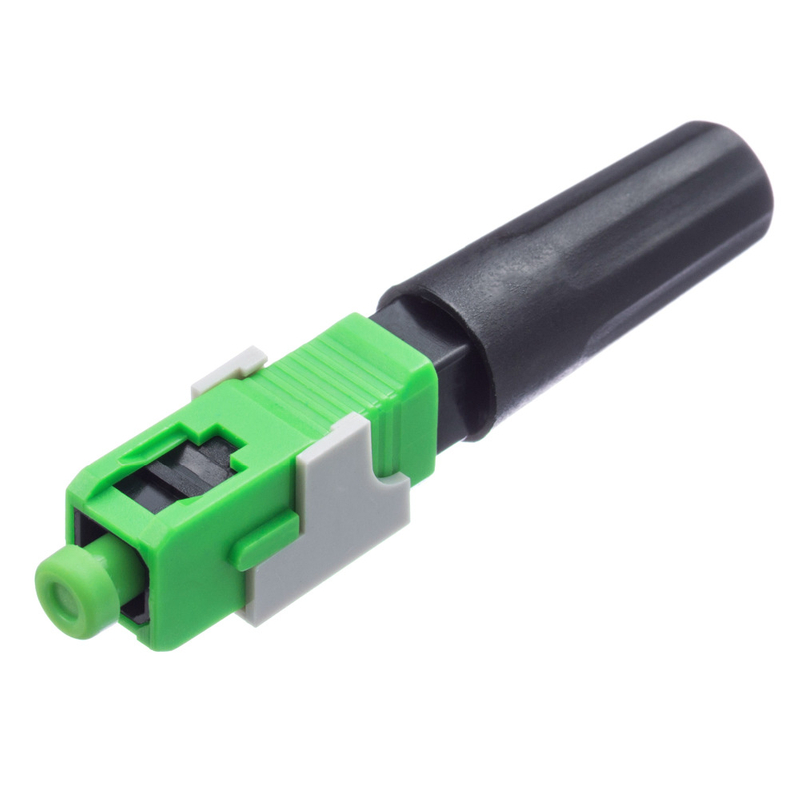

SC APC Quick Connector Telecommunication FTTH SC APC UPC optical fiber fast connectors

9

SC APC Quick Connector Telecommunication FTTH SC APC UPC optical fiber fast connectors

Fiber Optic Fast Connector make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.
Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.

Model:
SC fast connector
Brand:
Kewei

Quantity:




Inquire Add to Basket

Product Description

eature:

·Low insertion loss ,high return loss;

·Reliable optical performance;

·Good connection stability;

·Convenient for field installation;

·Installs fast,Operates easy ;

·Low cost.

Item	Parameter
Cable Scope	3.0 x 2.0 mm or 3.0mm FTTH Drop Cable
Size	5897.55mm
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.3dB(1310nm & 1550nm)
Return Loss	≤ -50dB for UPC, ≤ 55dB for APC
Success Rate	>98%
Reusable Times	>5 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>30 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test	IL ≤ 0.3dB
