Fiber Optical LC SM UPC Fast connector suitable for 0.9mm round cable Quick LC connector

Fiber Optic Fast Connector make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.
Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.
Quantity:
  • LC fast connector
  • Kewei

Packaging
100 pcs/box

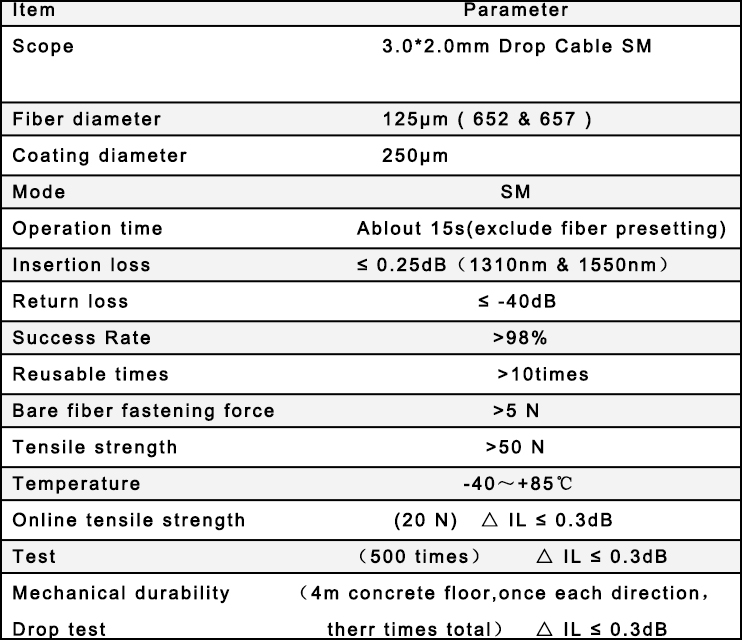

No. of fiber
1
Cable Type
2.0*3.0mm drop cable
Material
Plastic
Fiber diameter
125um(852&857)
Coating diameter
250um
Mode
SM
Operation time
About 15 s (exclude fiber presetting)
Insertion loss
<=0.3dB
Return Loss
<=-50dB
Sucess Rate
>98%
Application
FTTH
