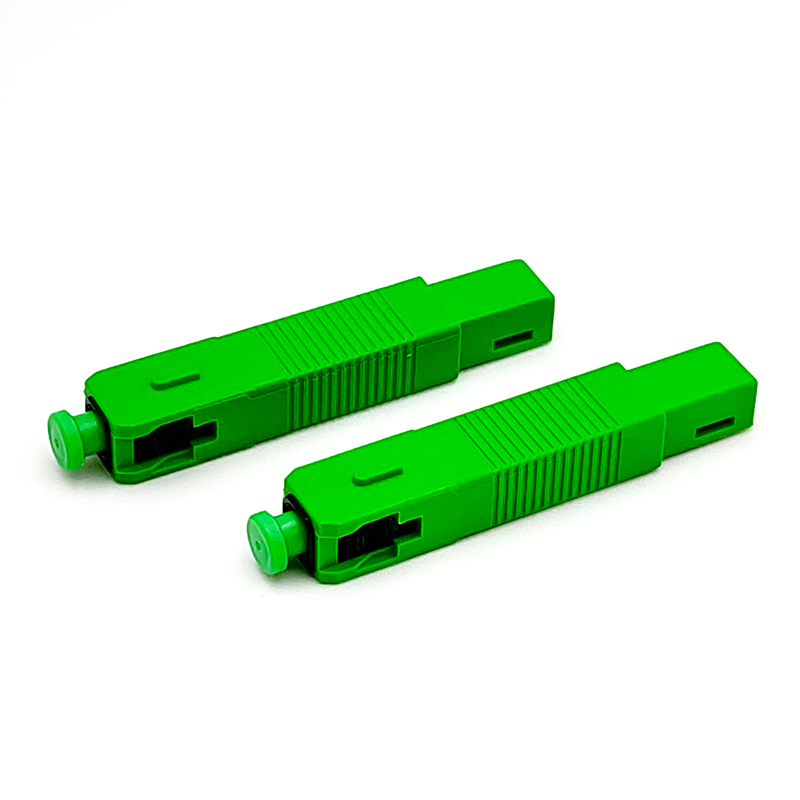

FTTH fiber optic quick connector Single mode UPC APC fiber optic quick connector SC APC Fiber Fast Connector

Fiber Optic Fast Connector make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.
Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.
Quantity:
  • SC fast connector
  • Kewei


 Product description



1.  Alloy V groove, high precision of fiber connection and excellent optical performance;

2.  Core structure: adopt the box-type structure design, good sealing, matching gel is not easy to lose, strong resistance to environment;

3.  Small size, suitable for narrow space environment;

4.  Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.



   Technical data

Item

Unit

UPC

APC

Insertion Loss

dB

≤0.25

≤0.3

Return Loss

dB

≥50

≥55

Tensile strength

N/2min

40

Work temperature

-40+85

Repeatability

dB

≤0.2

Repeated assembly

times

≥10

Mate-demate

times

≥500

Cable type

mm

2.0×3.0  drop cable

Product dimension

mm

49.7×8.9×8.2
