Feature:

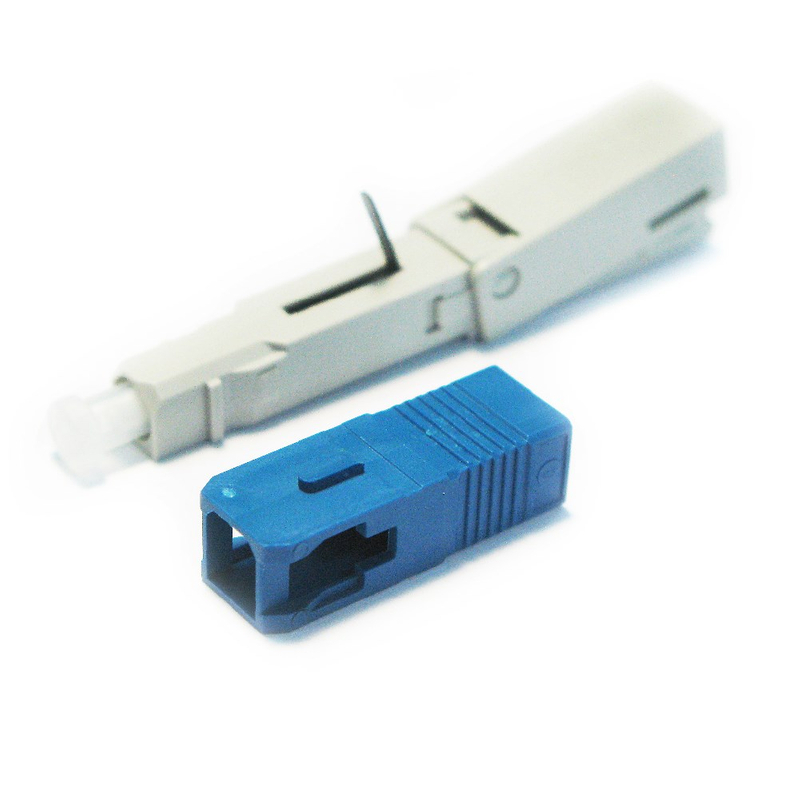

Fast fiber connector is used for field-installable optical fiber connector, widely used in Fiber To The Home (FTTH) access optical networks, not only for single-mode or multimode fiber, and can also choose to 900um,3 mm and the introduction of cable buffered type. With fast installation time and low insertion loss, the connector system provides a good alternative to fusion splicing. Installation is as easy as strip, clean, cleave cam and crimp.
Product parameters:
Optical Fiber | Plug Type | Diameter of Fiber | Fiber Mode | IL | RL | Tensile Strength | Thermal Shock |
2.0mm×3.1mm Butterfly type | SC/APC | 0.125mm | Single Mode | ﹤0.5dB(0.2dB typical) | ﹥55dB | ﹥40N | ΔIL﹤0.3dB,ΔRL﹤5dB |
Main Component | |||
No. | Name of components | Quantity | Remarks |
1 | Butterfly fiber optic cable crimpers | 1 set | suitable for 2.0mm*3.0mm butterfly fiber optic cable |
2 | Mechanical stripper | 1 set | suitable for Z/Y/APC |
3 | Fixed-length cutting template | 1set | suitable for 2.0mm*3.0mm butterfly fiber optic cable |
4 | Back cover open tool | 1 set | Suitable for Z/Y/APC |
Package:
No. | specification | Carton size(cm) | Capacity | N.W | Remarks |
1 | outer box | 44×37×28 | 2000pcs | 10.00KG | Configuration as per weight |
Feature:
Fast fiber connector is used for field-installable optical fiber connector, widely used in Fiber To The Home (FTTH) access optical networks, not only for single-mode or multimode fiber, and can also choose to 900um,3 mm and the introduction of cable buffered type. With fast installation time and low insertion loss, the connector system provides a good alternative to fusion splicing. Installation is as easy as strip, clean, cleave cam and crimp.
Product parameters:
Optical Fiber | Plug Type | Diameter of Fiber | Fiber Mode | IL | RL | Tensile Strength | Thermal Shock |
2.0mm×3.1mm Butterfly type | SC/APC | 0.125mm | Single Mode | ﹤0.5dB(0.2dB typical) | ﹥55dB | ﹥40N | ΔIL﹤0.3dB,ΔRL﹤5dB |
Main Component | |||
No. | Name of components | Quantity | Remarks |
1 | Butterfly fiber optic cable crimpers | 1 set | suitable for 2.0mm*3.0mm butterfly fiber optic cable |
2 | Mechanical stripper | 1 set | suitable for Z/Y/APC |
3 | Fixed-length cutting template | 1set | suitable for 2.0mm*3.0mm butterfly fiber optic cable |
4 | Back cover open tool | 1 set | Suitable for Z/Y/APC |
Package:
No. | specification | Carton size(cm) | Capacity | N.W | Remarks |
1 | outer box | 44×37×28 | 2000pcs | 10.00KG | Configuration as per weight |
Kunshan Kewei Fiber Communcations Equipment Co.,Ltd.
