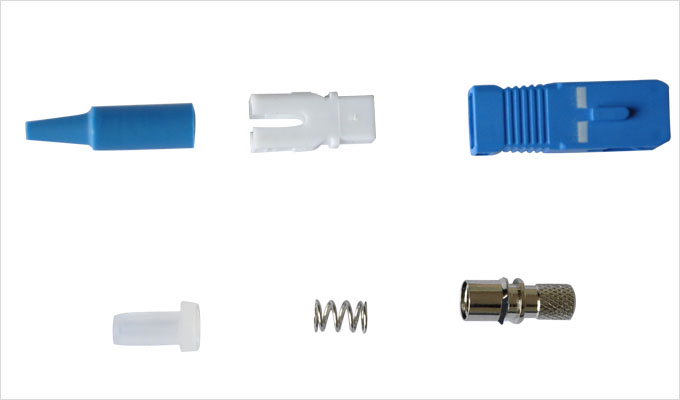

SC/PC 0.9mm SM connector kit

Fiber Optic Connector is an important components used in the fiber optic network. It is also the key part used in fiber optic patch cord and fiber optic pigtail.
Quantity:
sharethis sharing button

Features:

  1. High quality zirconia ferrules
  2. Low insertion loss and high return loss
  3. Non-optical disconnect performance
  4. Compliance with TIA/IEA, IEC
  5. Materials meet RoHS requirements



Applications:

  1. Telecommunication
  2. Computer networks
  3. CATV networks
  4. Active device termination



Specification:



Item SM MM
Ferrule End-face PC UPC APC PC
Insertion Loss ≤0.2dB ≤0.3dB ≤0.3dB
Return Loss ≥45dB ≥50dB ≥60dB ≥35dB
Durability ≤0.1dB typical change, 500 Cycles
Operating Temperature -40°C to +75°C
