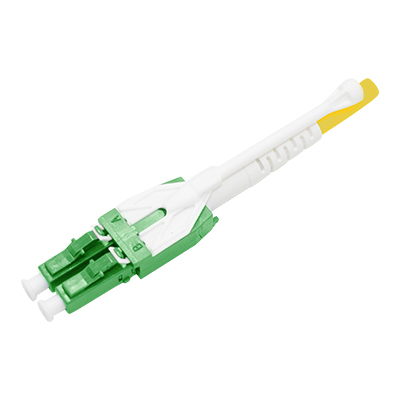

LC Uniboot Duplex fiber connector KITS with pulltab SM MM OM3 2.0mm ftth LC DX MM connector

9

LC Uniboot Duplex fiber connector KITS with pulltab SM MM OM3 2.0mm ftth LC DX MM connector

Connector Parts: Dust Cap, Violet Outer Housing, Inner Frame, Ferrule Assembly, Spring, Stopper, Crimp Sets, Ring, Black Red Boot, Violet Clip

Fiber Count: Duplex Insertion Loss: ≤0.25dB
Fiber Mode: Multi Mode
Return Loss: /
Polish Type: PC
Durability: >1000times
Cable Diameter: 2.0mm/3.0mm Operating Temp:-40~85°C

Quantity:




Inquire Add to Basket

Product Description

Features:

High quality zirconia ferrules
Low insertion loss and high return loss
Non-optical disconnect performance
Compliance with TIA/IEA, IEC
Materials meet RoHS requirements

Applications:

Telecommunication
Computer networks
CATV networks
Active device termination

Specification:

Item	SM			MM
Ferrule End-face	PC	UPC	APC	PC
Insertion Loss	≤0.2dB		≤0.3dB	≤0.3dB
Return Loss	≥45dB	≥50dB	≥60dB	≥35dB
Durability	≤0.1dB typical change, 500 Cycles
Operating Temperature	-40°C to +75°C
