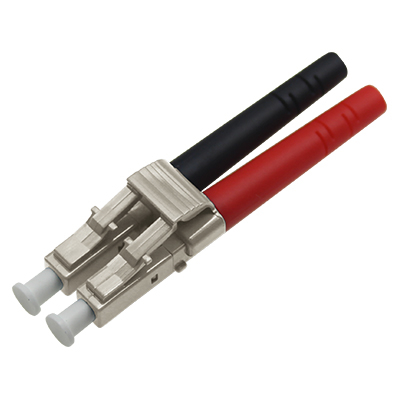

LC/PC SM Duplex fiber optic connector kit 3mm with duplex clip

Connector Parts: Dust Cap, Aqua Outer Housing, Ferrule Assembly, Spring, Small Transparent Tube, Inner Frame, upper cover below cover, Stopper, White Boot



Fiber Count: Duplex Insertion Loss: ≤0.25dB
Fiber Mode: Multi Mode
Return Loss: /
Polish Type: PC
Durability: >1000times
Cable Diameter: 3.0mm Operating Temp:-40~85°C
Durability: >1000times
Cable Diameter: 2.0mm/3.0mm Operating Temp:-40~85°C
Quantity:
sharethis sharing button

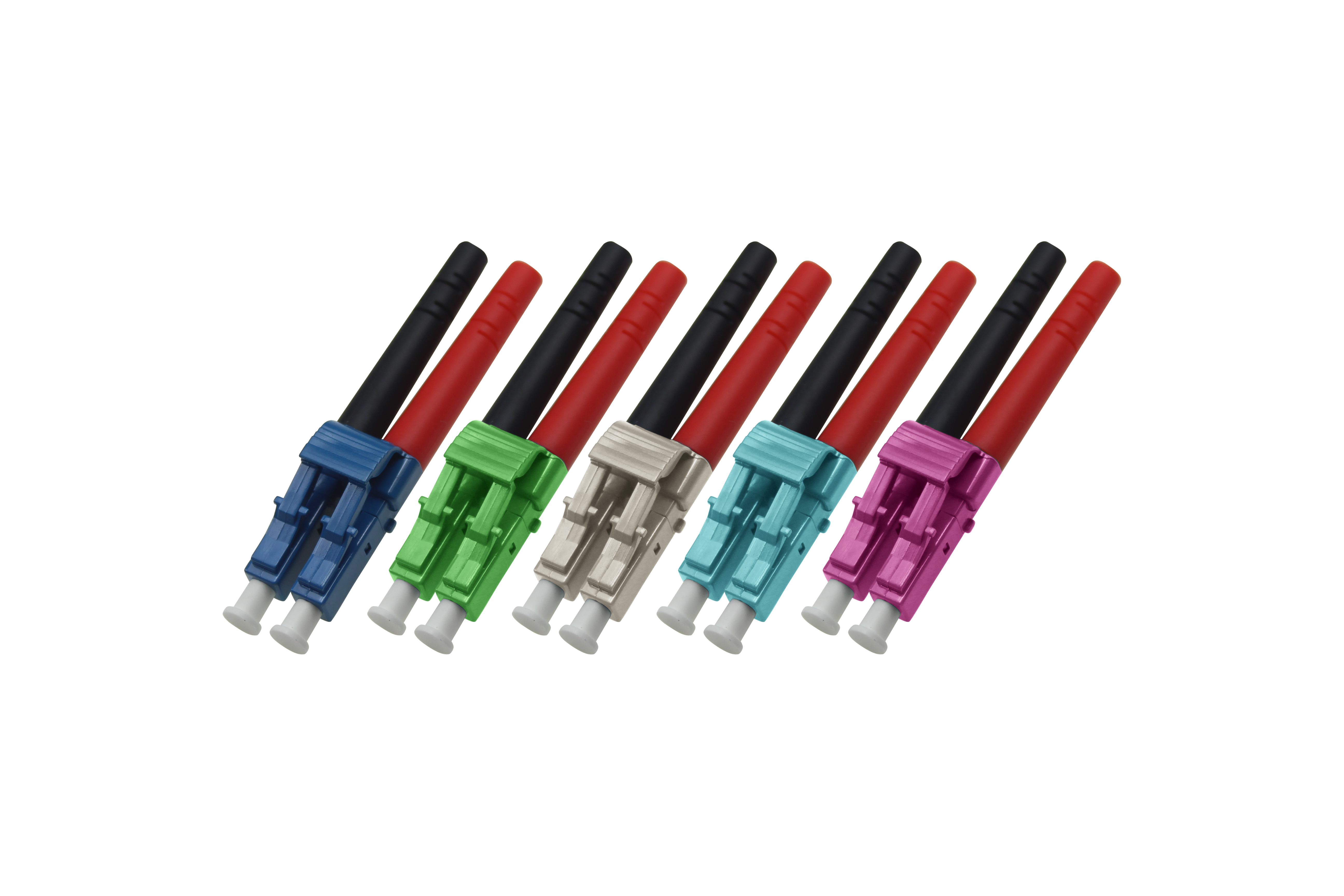

Housing Optional Colors: Blue, Green, Beige,  Aqua, Violet, Lemon Green (Color can be customized)







20200225091833_66332

Specification






parameter LC Uniboot Connector
SM MM
PC UPC APC PC
Insertion loss ≤0.25dB ≤0.25dB ≤0.25dB ≤0.25dB
Return loss 50dB 55dB 60dB /
operating wavelength 1310nm, 1550nm 850nm, 1300nm
Ferrule Concentricity 1um 4um
