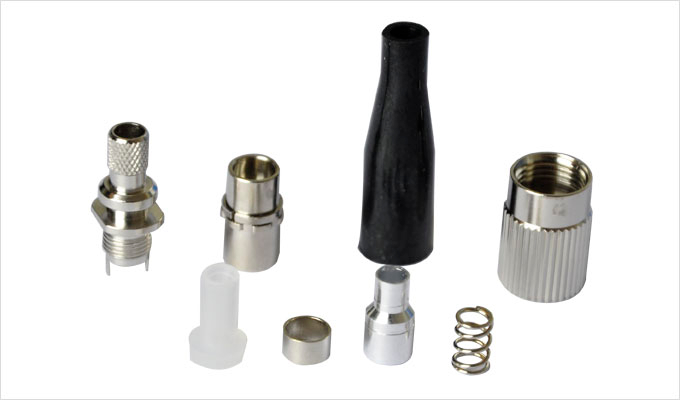

FC/PC 3.0mm SM connector kit

Fiber Optic Connector is an important components used in the fiber optic network. It is also the key part used in fiber optic patch cord and fiber optic pigtail.

Quantity:




Inquire Add to Basket

Product Description

Features:

High quality zirconia ferrules
Low insertion loss and high return loss
Non-optical disconnect performance
Compliance with TIA/IEA, IEC
Materials meet RoHS requirements

Applications:

Telecommunication
Computer networks
CATV networks
Active device termination

Specification:

Item	SM			MM
Ferrule End-face	PC	UPC	APC	PC
Insertion Loss	≤0.2dB		≤0.3dB	≤0.3dB
Return Loss	≥45dB	≥50dB	≥60dB	≥35dB
Durability	≤0.1dB typical change, 500 Cycles
Operating Temperature	-40°C to +75°C
