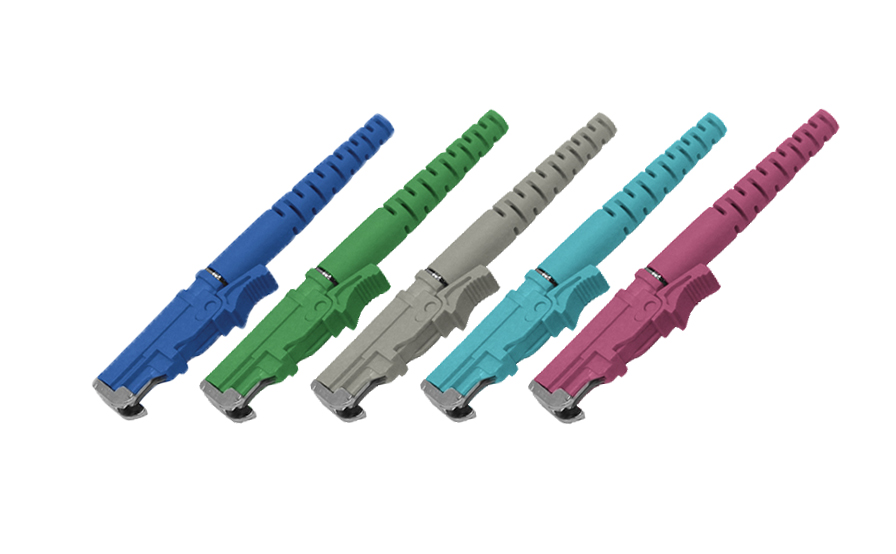

E2000 fiber optic connector SM Simplex 3.0mm

Connector Parts: Dust Cap, Blue Outer Housing, Ferrule Assembly, Spring, Stopper, Blue boot




Fiber Count: Simplex Insertion Loss: ≤0.25dB
Fiber Mode: Single Mode
Return Loss: ≥55dB (UPC)
Polish Type: UPC
Durability: >1000times
Cable Diameter: 0.9mm Operating Temp:-40~85°C
Quantity:
sharethis sharing button


Housing Optional Colors: Blue, Green, Beige,  Aqua, Violet, Lemon Green (Color can be customized)







20200225160522_18157

Specification






parameter E2000 Connector
SM MM
PC UPC APC PC
Insertion loss ≤0.25dB ≤0.25dB ≤0.25dB ≤0.25dB
Return loss 50dB 55dB 60dB /
operating wavelength 1310nm, 1550nm 850nm, 1300nm
Ferrule Concentricity 1um 4um
