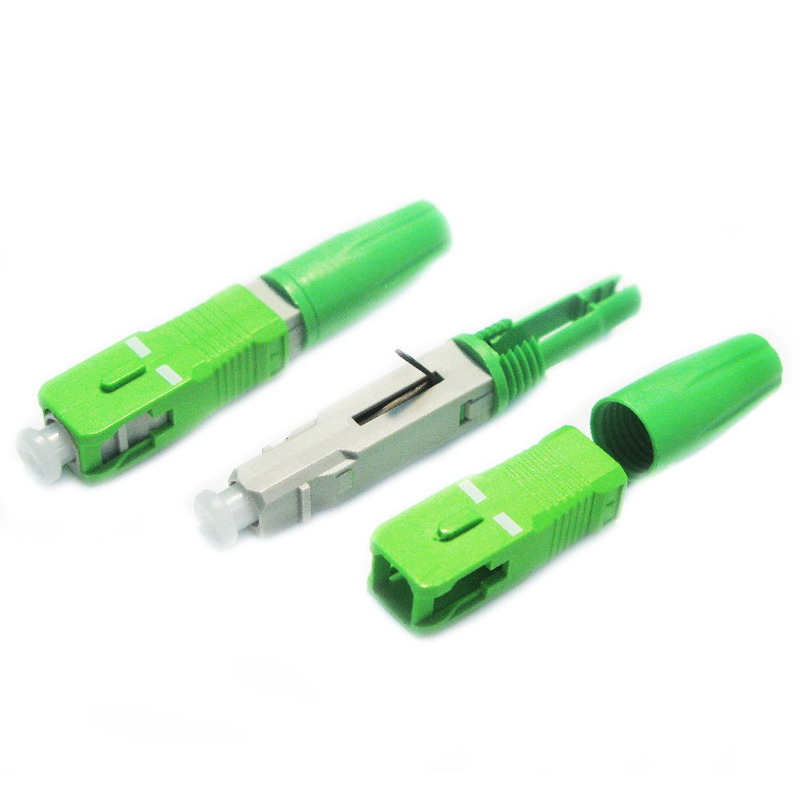

SC/APC fast connector

  • KW-FST03

  • Kewei

Quantity:
sharethis sharing button
Product Description

Feature:
Fast fiber connector is used for field-installable optical fiber connector, widely used in Fiber To The Home (FTTH) access optical networks, not only for single-mode or multimode fiber, and can also choose to 900um,3 mm and the introduction of cable buffered type. With fast installation time and low insertion loss, the connector system provides a good alternative to fusion splicing. Installation is as easy as strip, clean, cleave cam and crimp.

Product parameters:

Optical Fiber
Plug Type
Diameter of Fiber
Fiber Mode
IL
RL
Tensile Strength
Thermal Shock
2.0mm×3.1mm Butterfly type
SC/APC

0.125mm
Single Mode

﹤0.5dB(0.2dB typical)
﹥55dB
﹥40N
ΔIL﹤0.3dB,ΔRL﹤5dB

Configuration
Main Component
No.
Name of components
Quantity
Remarks
1
Butterfly fiber optic cable crimpers
1 set
suitable for 2.0mm*3.0mm butterfly fiber optic cable
2
Mechanical stripper
1 set
suitable for Z/Y/APC
3
Fixed-length cutting template
1set
suitable for 2.0mm*3.0mm butterfly fiber optic cable
4
Back cover open tool
1 set
Suitable for Z/Y/APC

 Package:

No.
specification
Carton size(cm)
Capacity
N.W
Remarks
1
outer  box
44×37×28
2000pcs
10.00KG
Configuration as per weight
