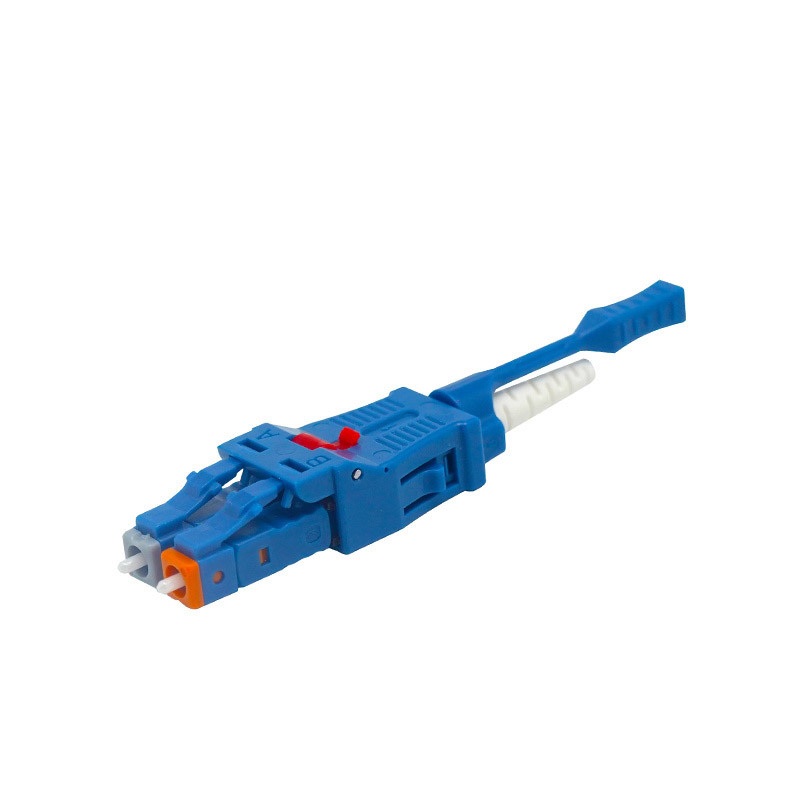

LC Switchable Uniboot

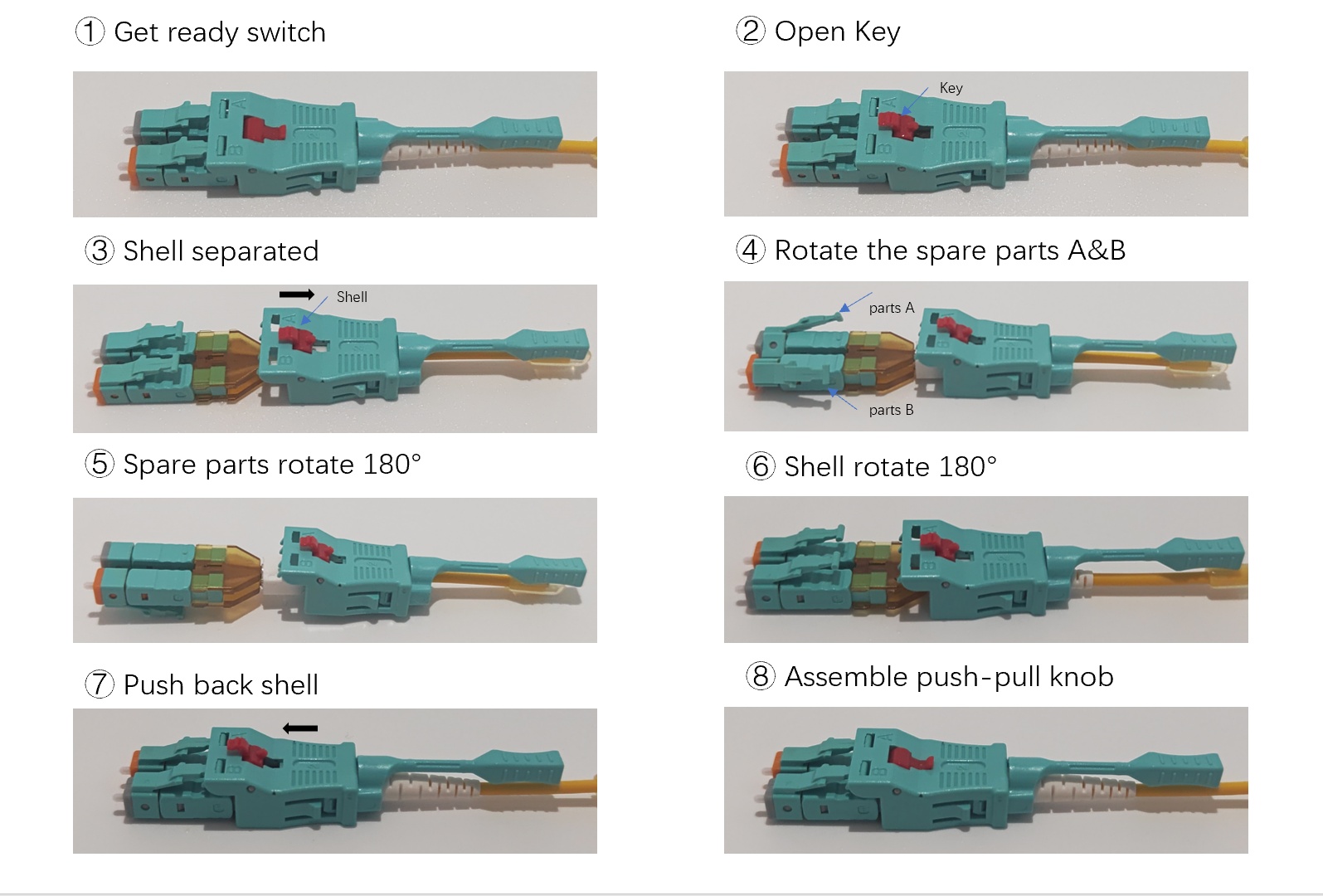

Polarity Switchable Uniboot LC LC Fiber Connector 2.0mm 3.0mm

Patented Product Version 2 LC Uniboot Connector Polarity Switchable UPC/APC/AQUA with Pull Tab White Boot

Model:
Polarity switchable uniboot LC
Brand:
kewei fiber

Quantity:
Availability:





Inquire Add to Basket

Product Description

Application

◉ Test Equipment
◉Telecommunication Networks
◉Local Area Networks (LANs)







◉ Data Processing Networks
◉ Premise Installations
◉ Wide Area Networks (WANs)

◉ Industrial, Medical & Military

◉ CATV, Metro

◉ Active Device Termination

Specification

parameter	LC Uniboot Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um
