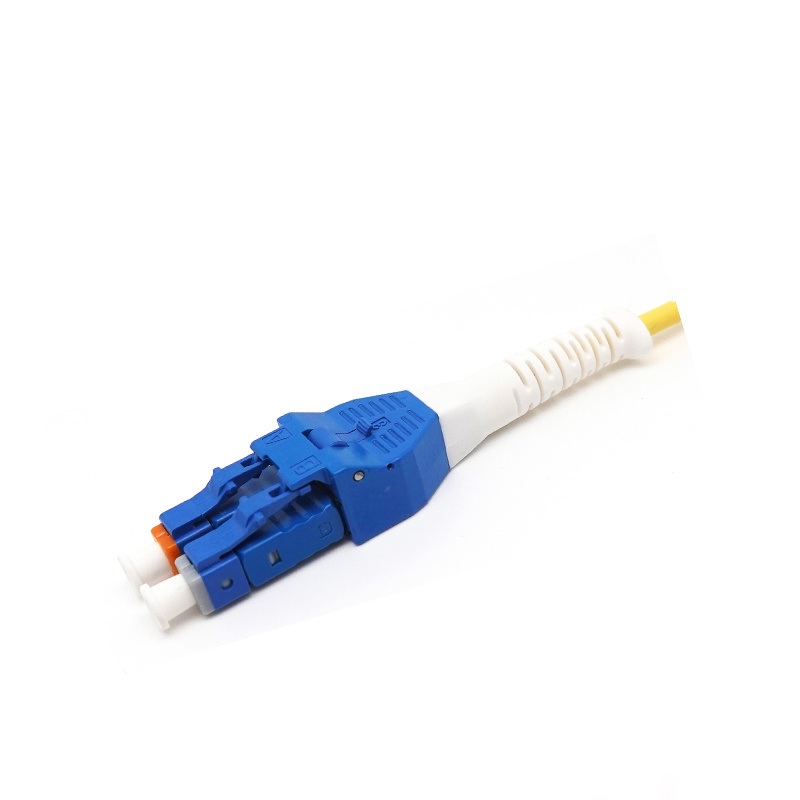

LC Pull Uniboot Connector

LC Pull Uniboot Connector’s design incorporates a reinforced boot for a quick push-pull insertion and removal of the connector (no tabs needed). This new design helps conserve precious space in high-density panels and the color options assist with organization. Three cable sizes are available: 1.6mm, 2.0mm and 3.0mm.

Model:
a reinforced boot for fast insertion & removal
Brand:
kewei fiber

Quantity:
Availability:





Inquire Add to Basket

Product Description

Application

◉ Test Equipment
◉Telecommunication Networks
◉Local Area Networks (LANs)







◉ Data Processing Networks
◉ Premise Installations
◉ Wide Area Networks (WANs)

◉ Industrial, Medical & Military

◉ CATV, Metro

◉ Active Device Termination

Specification

parameter	LC Uniboot Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um
