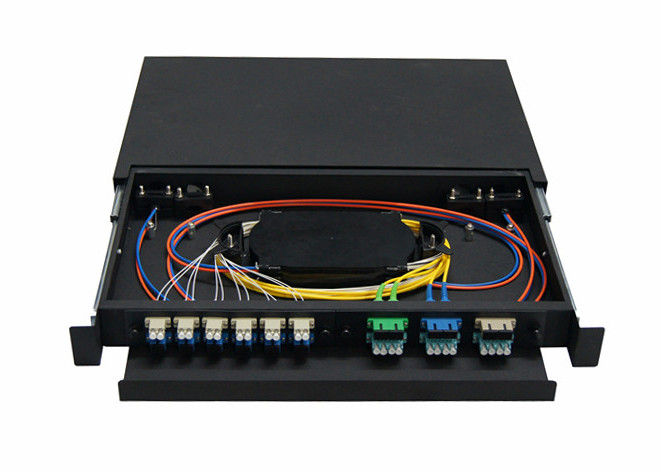

sliding type patch panel for Lan Network

Quantity:
sharethis sharing button

Quick Detail:

  1. Box type: Fixed type, Sliding type, Dummy drawer type
  2. Suitable Adapter: FC, SC, ST, LC
  3. Cable entry port: 4 ports
  4. No. of adapter ports: 12, 24, 48, 72, 96
  5. Structure: 19 inch, Rack mounted
  6. Height: 1U, 2U, 3U, 4U



Features:

  1. Easy to repeated opening and using
  2. Could deploy valve and Grounding device

  3. 19" standard slide-out design, easy and convenient on assembling

  4. Cabinet surface covered with electrostatic powder coating, luxury and beautiful

  5. Apply for SC/ST/FC/LC pigtail and adapter

  6. Applicable in the branch connection of optical cable termination



Application:

  1. LAN/WAN
  2. CATV Networks
  3. Data communications Networks
  4. Local Area Networks
  5. Widely used in FTTH access network
  6. Telecommunication Networks



Specification:



Type RMS-1U RMF-2U RMS-4U
Size(mm)
L*W*H
430*3000*1U 430*300*2U 430*300*4U
Max Capacity (Core) 48 96 192
Outer Carton Dimension(mm) 485*420*350/5pcs 500*355*550/4pcs 500*350*540/1PCS
Outer Carton Weight(Kg) 27.5/5pcs 26.3/5pcs 18.9/PCS



Technical Data:



Model RMF-1U
Size(mm): L*W*H 430*300*1U
Max capacity of splice tray: 24core(1U)
Optical fiber winding radius: ≥40mm
Fiber length left in tray: none
Fiber length left in tray: ≥1.6m
Fiber capacity: 48 cores
Working temperature: - 400°C ~ + 600°C
Lateral pressure-resistance: 500N
Shock-resistance: 750N
