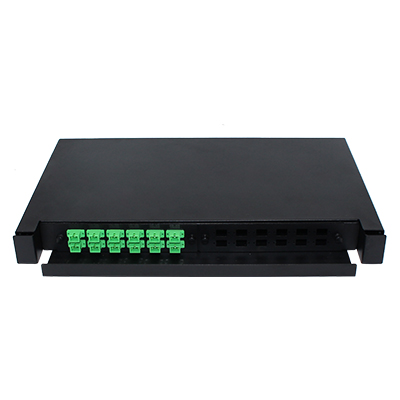

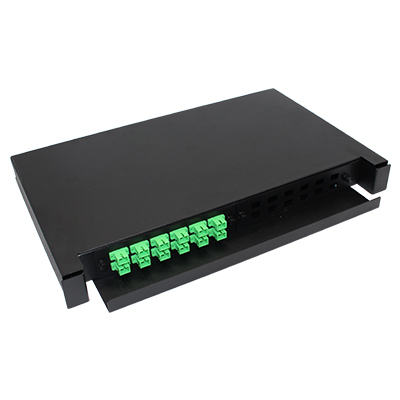

Rack mounted fiber optic patch panel 12 port 24 port optical distribution frame

Dimensions:480(W)* 300(D)* 44.5(H)

Color: Black

Weight: 3.5kg

Adapter Capacity: 24 pcs

Connector: SC/LC/FC/ST

Mater: SPCC

Model: Rack Mount

Working temperature: -10℃~+60℃

Storage Temperature: -25℃~+85℃

Atmospheric Pressure: 70KPa~106KPa

Relative Humidity: ≤85%(+30℃)
  • 24 cores

Quantity:
sharethis sharing button
1. The use of high-quality cold-rolled steel plate, electrostatic spray plastic on the surface, has good corrosion resistance
2. Suitable for the installation of SC / ST / LC / FC and other adapters, large capacity, can store redundant fiber jumper
3. Full-fiber walking path design, protect fiber jumper in the whole process, and protect its full radius ≥40mm
4. Various wiring units and accessories are complete, and can be selected according to needs
5.19 "standard size design, easy to install on the cabinet.
