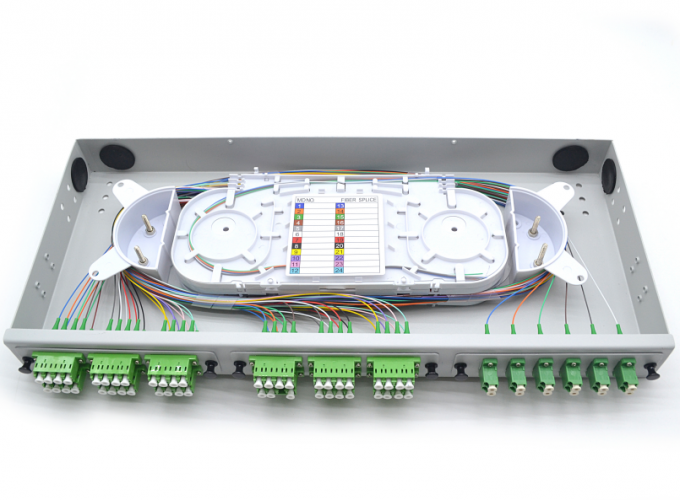

60 cores
| Quantity: | |
|---|---|
■Applications:
▶Optical Access Network
▶Data Processing Centers
▶Cable television
▶Local Area Network
▶Coarse Wavelength Division Multiplexer
■Features:
▶Removable panel design can meet different requirements.
▶Slide rail construction,panel fasteners for fixing.
▶Fit for“19”rack.
▶Suitable for FC,SC,LC,ST,etc
▶To assemble panels according to customer requirements
Configuration
| Item | Specification | Remark | |
| Size(mm) | 435*190*1U | | |
| Number of panels | 3 | | |
| Max Capacity | LC Pigtail(pcs/panel) | 12 or 24 | |
| | SC Pigtail(pcs/panel) | 6 or 12 | |
| Material | Cold-Rolled steel plate | | |
| Thickness of material(mm) | 1.2 | | |
| Weight(KG) | 1.5 | | |
| Color | Greyish | | |
| Color Number | 7035 | | |
| Operating Temperature(℃) | -40～+65 | | |
