Huawei Mini Wall Outlet Face Plate FTTH Fiber Optic Access Terminal Box

It is used for different kinds of modules and applied to the working area subsystem.
It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO. With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer’s choice. Cable management can be connected without cutting(with express port). All modules are free of welding.
  • KW-FTB-304H

  • Kewei fiber

Quantity:
sharethis sharing button

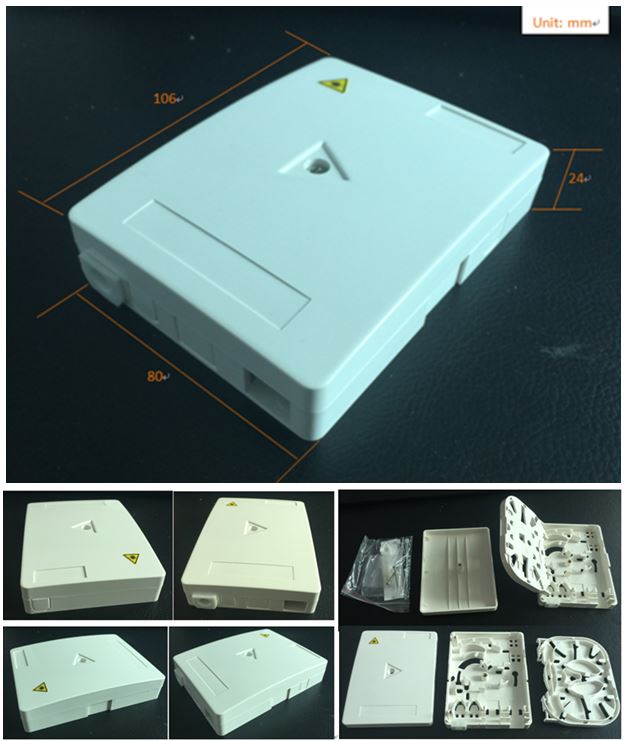

Dimension(LxWxH)mm 106*80*24
Installation Wall mounting (indoor )
Cable entry Supporting uncut
Max. Cable diameter 2*3mm
Adapter qty 1pc SC or LC duplex
Net weight / g 68.2
Net weight/carton box 15kgs
Package information 208pcs/carton box, carton size: 520*360*390mm, gross weight/ carton: 19.5kgs, net weight/ carton: 15kgs


201903061127204885329 201903061129079651281
