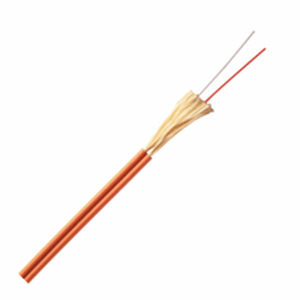

Multimode Duplex fiber optic cable

Quantity:
sharethis sharing button
Duplex Cable

2fibers. Figure 8 structure. 900um or 600um Tight buffer fiber.Aramid yarn, PVC jacket.

Standards
Comply with Standard YD/T 1258.3-2003, ICEA-596, GR-409 , IEC 794

Cable Code
Cable Diameter(mm) (2.8±0.2)*(6.0±0.4) (2.0±0.2 )*(4.2±0.4) (1.6±0.2)*(3.4±0.4)
Cable Weight(kg/km) 11.6 8.0 4.8
TBF Diameter 900±50um 900±50um 600±50um

Mechanical Characteristics

Tensile Strength Long term 100N 100N
Short term 200N 200N
Cursh Tesistance Long term 200N/100mm 100N/100mm
Short term 1000N/100mm 500N/100mm
Bending Radius Dynamic 50mm
Static 30mm
Optical Characeristics


50/125um 62.5/125um G652 G655
Attenuation(+20 @850nm ≦3.5db/km ≦3.5db/km

@1300nm ≦1.5db/km ≦1.5db/km

@1310nm

≦0.45db/km ≦0.5db/km
@1550nm

≦0.30db/km ≦0.5db/km
Bandwidth(classA) @850nm ≧500MHz.km ≧200MHz.km

@1300nm ≧1000MHz.km ≧600MHz.km

Numerical Aperture 0.020±0.015NA 0.275±0.015NA

Cable Cut-off Wavelength ^cc

≤1260nm ≤1480nm

Attenuation at temperature cycling(-20+ 60
@1300nm ≦0.25db/km ≦0.25db/km

@1550nm

≤0.10db/km ≤0.15db/km


Enviromental Characteristics.

Transport Temperature   -20+60
Storage Temperature   -20+60
Installation Temperature   -5+50
Operating Temperature  -20+60
