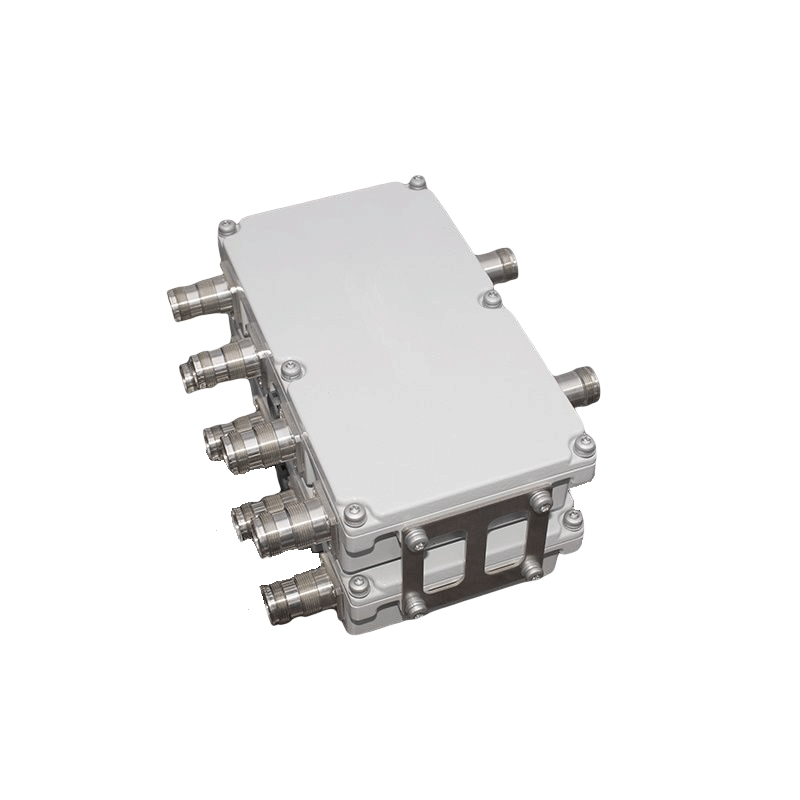

Hot Sell RF 1695-1780&2110-2700/1850-2000 MHz double type RF Diplexer Quad Band Combiner

9

Hot Sell RF 1695-1780&2110-2700/1850-2000 MHz double type RF Diplexer Quad Band Combiner

Features
Wide operating frequency range The port adopts an N-female connector, andthe antenna port adopts a D-female connector, which is easy tooperate and maintain
RF combiner has large carrying power and loN PIM
nd lightning protectionIP 67 and RF combiner supports DC-bypass a
Low VSWR and return loss
RF combiner has long life cycle
Application
RF combiner supports 2G/ 3G/ 4G/ 5G commnication system In communication distribution system links, fF combiner is used for power distribution

Model:
1695-1780&2110-2700/1850-2000 MHz
Brand:
Kewei
Code:
80550

Quantity:
Availability:





Inquire Add to Basket

Product Description

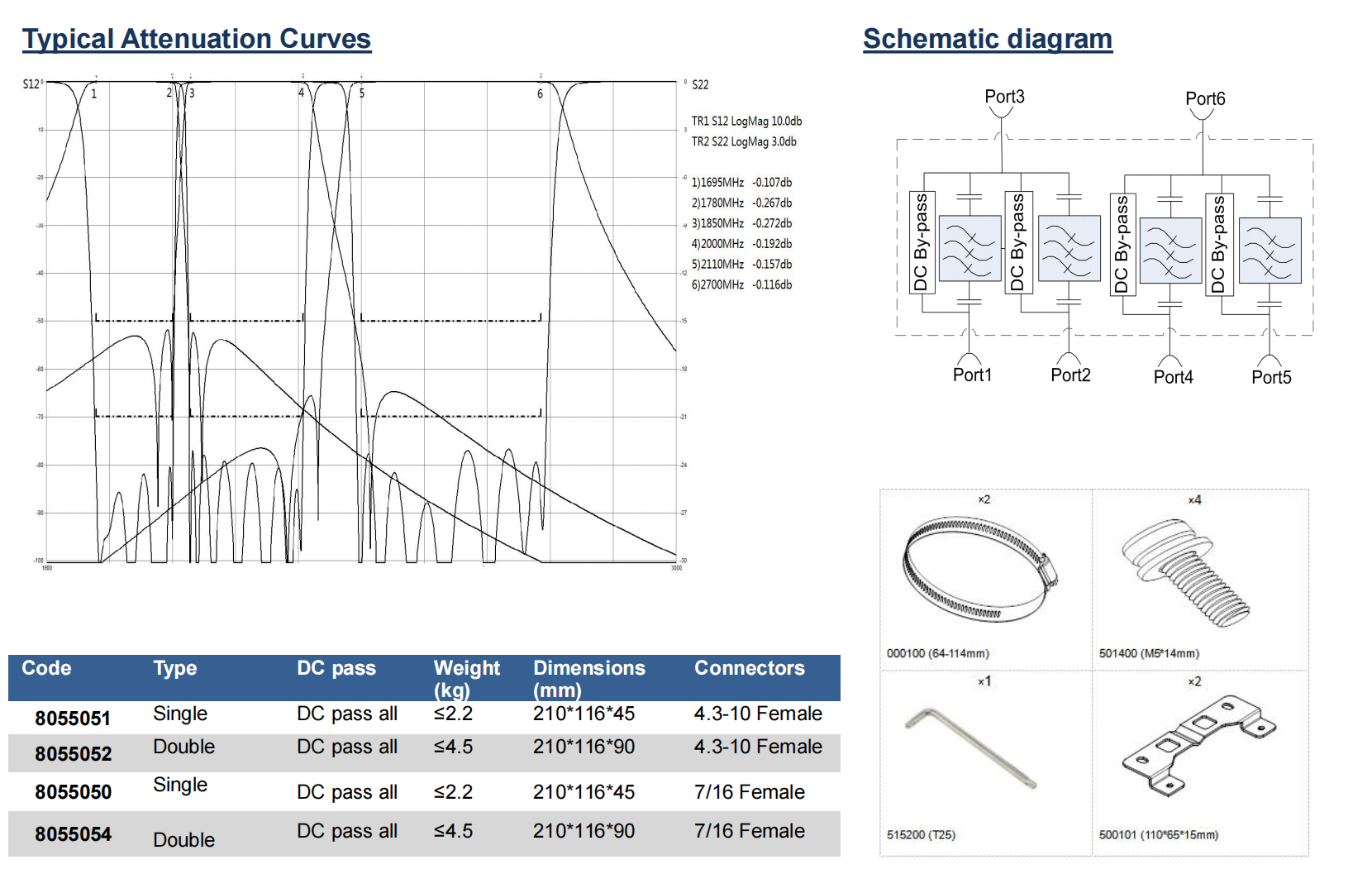

Specification

Part Number	80550
Electrical
Frequency range (MHz)	Port1→ Port3 Port5→ Port6 Port2→ Port3 Port4→ Port6	1695-1780&2110-2700 1850-2000
Insertion loss(dB)	≤0.4
Isolation(dB)	≥50
Retrun Loss/VSWR	≤-20dB/1.22
Intermodulaion (dBc)	≤-150/155/160 (with 2×20W)
Impedance (Ω)	50 Ω
Input power (W)	≤200 W (avg.)
DC/AISG	By-pass(max. 3000mA)
Lightning protection	10KA; 10/350μs pulse
Environmental
Operation termperature	-20°C to +65 °C
Storage temperature	-40°C to +85 °C
Relative humidity	5% - 95%
Application	Indoor or outdoor (IP67)
