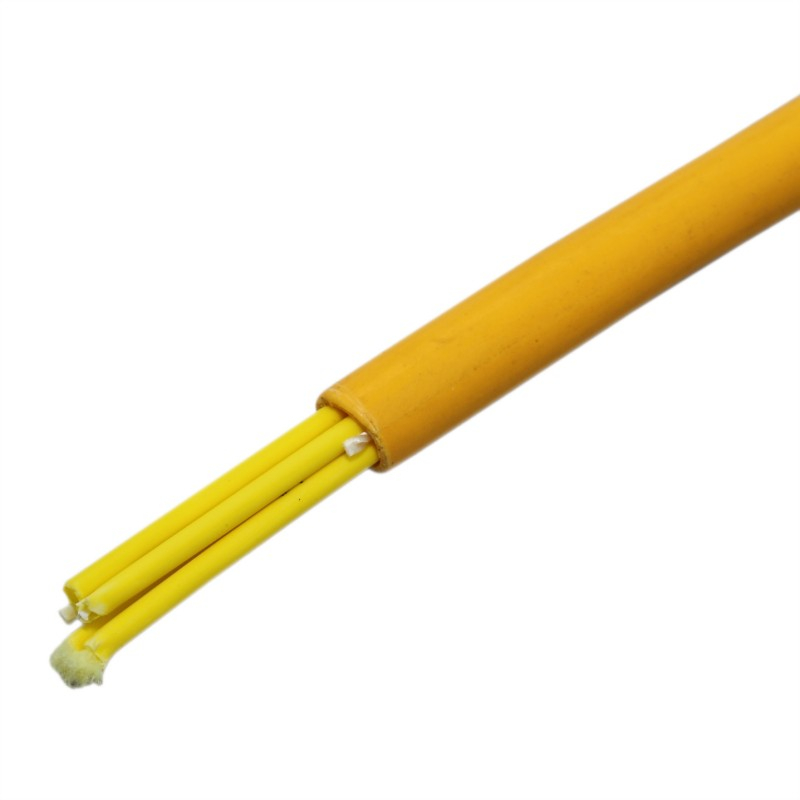

Fiber optic breakout cable

Description
02-18fibers,Standed structure, FRP strength member, 1fiber subunit(900um Tight buffer fiber, Aramid yarn), PVC jacket

Standard
Comply with standard YD/T 1258.3-2003. ICEA-596, GR-409, IEC794, etc: and meet the requirment of UL approval for OFNR.

Cable Code          MPC-02   MPC-04    MPC-06   MPC-08   MPC-10  MPC-12

Cable diameter(mm)	7.2±0.5	7.2±0.5	8.3±0.5	9.4±0.5	10.7±0.5	12.2±0.5	12.212.2±0.5
Cable weight(kg/km)	38	45.5	63	84	125	148	153
TBF diameter	900±50um


Mechanical Characreristics


Tensile Strength	Long term	200N	200N	200N	200N	200N	200N	400N
	Short term	660	660	660	660	660	660	1320
Cursh Tesistance	Long term	300N/100mm
	Short term	1000N/100mm
Bending Radius	Dynamic	20×D(cable diameter)
	Static	10×D (cable diameter)


Optical Characeristics

		50/125um	62.5/125um	G652	G655
Attenuation(+20℃	@850nm	≦3.5db/km	≦3.5db/km
	@1300nm	≦1.5db/km	≦1.5db/km
	@1310nm			≦0.45db/km	≦0.5db/km
	@1550nm			≦0.30db/km	≦0.5db/km
Bandwidth(classA)	@850nm	≧500MHz.km	≧200MHz.km
	@1300nm	≧1000MHz.km	≧600MHz.km
Numerical Aperture		0.020±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength ^cc				≤1260nm	≤1480nm
Attenuation at temperature cycling(-20℃+ 60℃	@1300nm	≦0.25db/km	≦0.25db/km
	@1550nm			≤0.10db/km	≤0.15db/km


Enviromental Characteristics.

Transport Temperature   -20℃～+60℃
Storage Temperature   -20℃～+60℃
Installation Temperature   -5℃～+50℃
Operating Temperature  -20℃～+60℃
