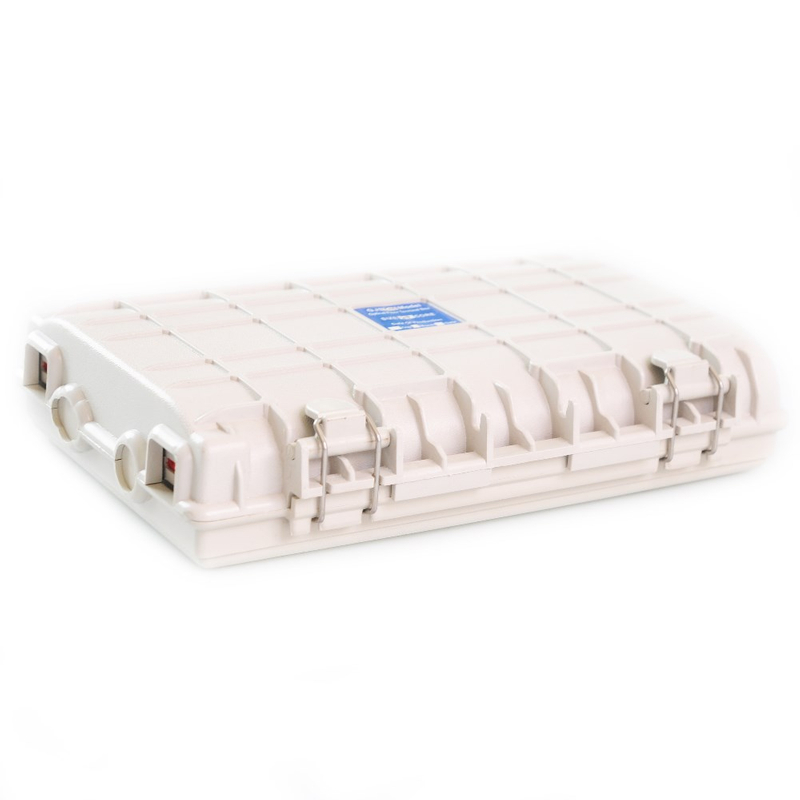

Fiber Optic Termination Box

Quantity:
  • KW-FTB102
  • Kewei
Product Description

Feature:
1. High-strength plastic,UV,UV-resistant,resistant to rain
2. Overhead for indoor and outdoor use with wall
3. Of the box a "lock" structure,opening and closing of the box simple,convenient and safe use of locking features.
4. Splice tray page design easy to use,with the sub-fiber splice more rational distribution of complete separation.
5. The structure of GJS-T001 termination box is innovative,designed in up-down bisection.Its installtion is quite simple.By untightening one piece of fixing nut,it succeeds in opening the housing and allows fiber cable and pigtails to pass in and out in one side.The box is made of high-strengh polycarbonate plastic materials,which has mechanical stength,therefore it is reliable and long lasting,it is of nice shape and beautiful appearance.
6. The elastic material is used to fix pigtail.When distribution of pigtail can not be determined,it is possible to wind pigtail into clasp.Whenever it is needed,the connector could be installed outside of the housing,there fore it can connect termiantion equipment without connecting adapters.
Scope:
The termination box is suitable for one optical cable with diameter of 16mm jointing to two cable with diameter of 11mm,or one cable with diameter of 16mm jointing to anther cable of 16mm.

Specifications:

Size: mm  L×W×H
Cable enter ports

         Cable Diameter(max)
Max.Capacity(bunchy)
  No.of trays

250×180×50

Singleside 2 pieces(total 2 pieces)

φ2mm~φ20mm
6~24

1~4

Trays:

Model No.
Capacity
Size: mm    L×W×H
FOST009
Bunchy:single 6 cores
105*135*9

Configuration
Main Component
No.
Name of components
Quantity
Usage
Remarks
1
FOSC(cover)
1 set
Protecting fiber cable splices in whole

  2
    FOSC(button)
              1 set


3
Fiber optic

splice tray(FOST)
Max 6 trays (bunchy)
Fixing heat shrinkable protective
sleeve and holding fibers

Main accessories and special tools
4
Heat shrinkable protective sleeve

Protecting fiber splices
Configuration as per capacity
5
Nylon tie

Fixing fiber with protective coat
Configuration as per capacity
6
Earthing wire
1 piece
Putting through between earthing device

7
Labeling paper
1 piece
Labeling fiber

8
Abrasive cloth
1 piece
Scratching fiber calbes

9
Plastic inflatable tube
1 piece


10
Instruction manual
1 piece
standard installation


Optional accessories
No.
Name of components
Quantity
Usage
Remarks
1
Pressure testing valve
1 set
After injecting air it is used for pressure testing and sealing testing
 Configuration as per requirement
2
Earthing deriving device
1 set
Deriving metallic components of fiber cable in the FOSC for earthing connection
Configuration as per requirement
3
Desiccant
1 bag
Put into FOSC before sealing for desiccating air.
Configuration as per requirement
4
Heat shrinkable protective sleeve
Configuration as per requirement
Protecting fiber splices
Configuration as per requirement

 Package:

No.
specification
Carton size(cm)
Capacity
N.W
Remarks
1
inner box
27.5×20×8
1pcs
0.65-0.75KG
Configuration as per weight
2
outer box
57×43×44.5
20pcs
13-15KG
Configuration as per weight
