FTTH cable 1cores G657A1

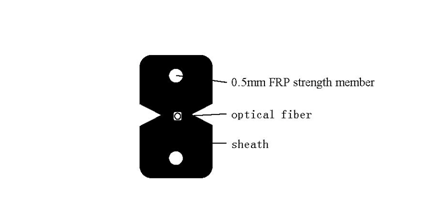

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

Quantity:




Inquire Add to Basket

Product Description

Technology specification

Item	Technology parameter
Cable type	GJXFH-1B6
Cable specification	3.0×2.0
Fiber color	nature
Fiber type	9/125
Sheath color	black
Sheath material	LSZH
Cable dimension mm	3.0（±0.1）*2.0（±0.1）
Cable weight Kg/km	9.6
Min. bending radius mm	B6a：15(static) 30(dynamic) B6b：10(static) 25(dynamic)
Attenuation dB/km	≦ 0.4 at 1310nm，≦ 0.3 at 1550nm
Short tension N	80
Short crush N/100mm	1000
Operation temperature ℃	-5~+50 Relative to 20℃，fiber additional attenuation ≤0.2dB/km
