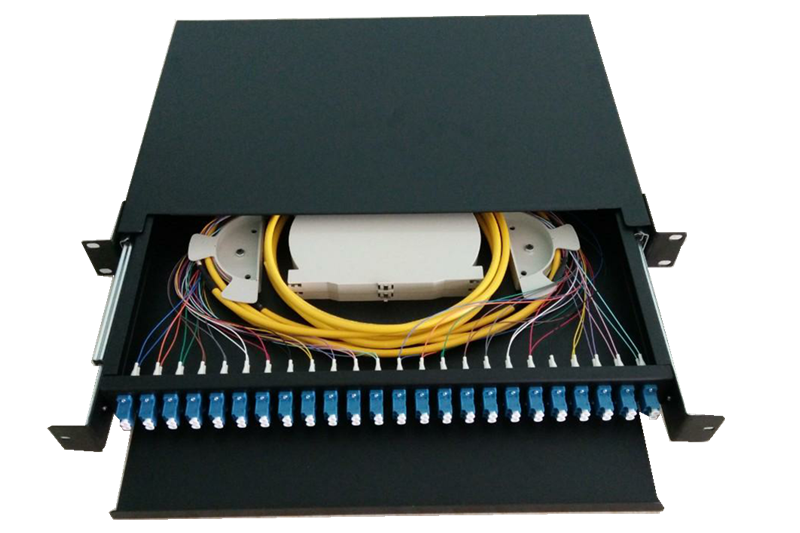

Description: The patch panel is designed according to the standard 19-inch cabinet, it can be sliding type or fixed type, rack mount installation
Features: 1) Material: cold rolled steel 2) The body with electrostatic spraying surface, light structure and good-looking appearance 3) 19" or 23'' standard installation, adjustable in forward and backward directions Kunshan Kewei Fiber Communications Equipment Co.,Ltd 4) Suitable for being installed in different kinds of racks or cabinets 5) Side door and upside door can be opened to arrange the fiber 6) Optical cables can be lead in/out from rightward or leftward 7) FC, SC and LC adapter panels available 8) Thickness:0.8mm /1.0mm /1.2mm
Main technique index: 1) Fiber radius of curvature:≥40mm 2) Extra loss of fiber tray: none 3) Length of fiber coiled:≥1.6m 4) Working temperature: - 40℃ ~ + 60℃ 5) Resistance to lateral pressure:500N 6) Shock-resistance: 750N
Dimension(mm) Material Max Capacity Interface type 485x300x1U Cold Rolled Steel Sheet 12 cores SC/FC/LC 485x300x1U Cold Rolled Steel Sheet 24 cores SC/FC/LC 485x300x2U Cold Rolled Steel Sheet 48 cores SC/FC/LC
Packaging Packing information: Carton
