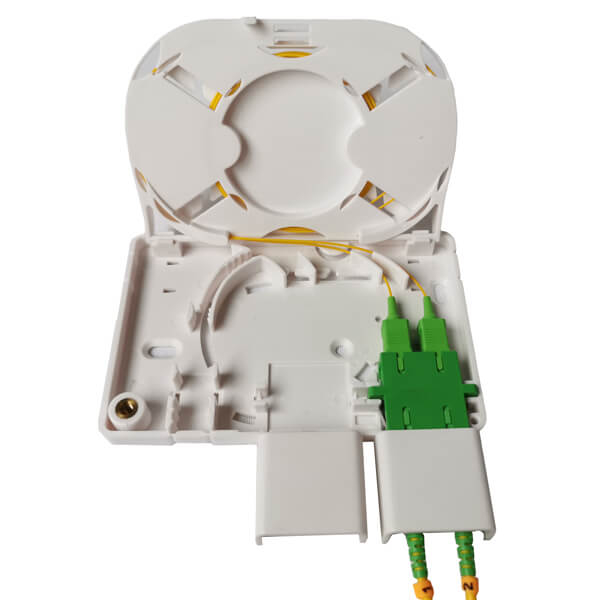

4 Ports FTTH Customer Fiber termination box with protection cover

Compact & attractive design for interior wall mounting.
Cables can enter unit from rear or bottom.
All fibers are positively managed to maintain a 30mm minimum bend radius.
Optional and removable rear entry cable management.
Flip tray to allow access to connectorised tails and cable entry.
Removable cover for easy access.
Cover security screws available as an option.
Unit manufactured from fire resistant UL94-V0 rated material.
Patch cords exit unit on bottom face and are protected by two protection covers.
  • KW-FTB-304A

  • Kewei fiber

Quantity:
sharethis sharing button

Specification
Size (H×W×D): 120×80×25mm
Material: Plastic ABS
Color: White (RAL9001)
Storage of fibers: G657A1 or G657A2
Splice Capacity: 1,2,4 cores
Splice method: Fusion splice
Adapter ports: 2xSC DX or 2xLC Quad Adapter
Input cable: 3mm or figure 8 (2*3mm)
Installation Models: Wall Mounted
